HydroTron SPH60 Sub. Bore Pump – 30 lpm to 80 lpm Flow Rate – Heads up to 90 metres 0.37kW 0.75kW 1.1kW 2 Wire Motors

HydroTron SPH60 Sub. Bore Pump – 30 lpm to 80 lpm Flow Rate – Heads up to 90 metres 0.37kW 0.75kW 1.1kW 2 Wire Motors

$780.00$860.00

In stock

$780.00$860.00

Clear
View cart

HydroTron have various models and specifications in our range.
SPH60 range covers from 30lpm to 80 lpm

SPH60-370-2W    60 lpm @ 34 metres    6 stages
SPH60-750-2W    60 lpm @ 52 metres   10 stages
SPH60-1100-2W  60 lpm @ 77 metres   14 stages

Motor:  230Vac single phase 50hz
Manufacturer’s warranty: 2 years

SKU: N/A

Description

HydroTron have various models and specifications in our range.
SPH60 range covers from 30lpm to 80 lpm
SPH60 range covers from 20m head to 90m head
Pump:
SPH60-370-2W    60 lpm @ 34 metres    6 stages
SPH60-750-2W    60 lpm @ 52 metres   10 stages
SPH60-1100-2W  60 lpm @ 77 metres   14 stages

Pump outlet: 40mm Female BSP
Pump casing and shaft: 304 stainless steel
Impellers: Polymethylene
Diffusers: Polycarbonate
Mounting flange: NEMA standard motor

Motor:
Food grade oil-lubricated motor
Submergence to depths of 80 metres
Fluid temperature to 35C
Bearing capable of high trust load

Manufacturer’s warranty: 2 years

Additional information

WeightN/A
DimensionsN/A
Size

SPH60-1100-2W single phase submersible pump unit, SPH60-370-2W single phase submersible pump unit, SPH60-750-2W single phase submersible pump unit

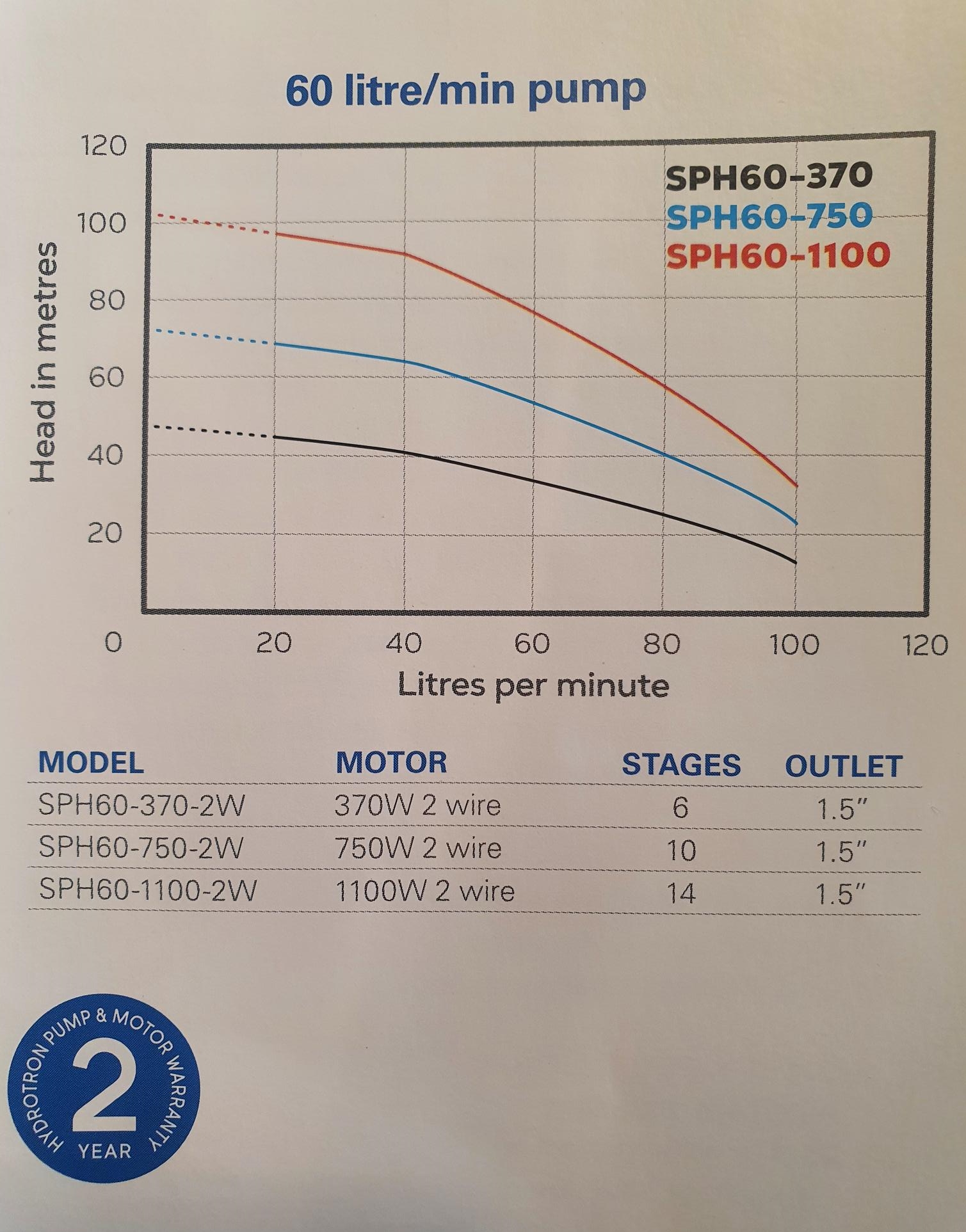

SPH60 pump curve

Download
