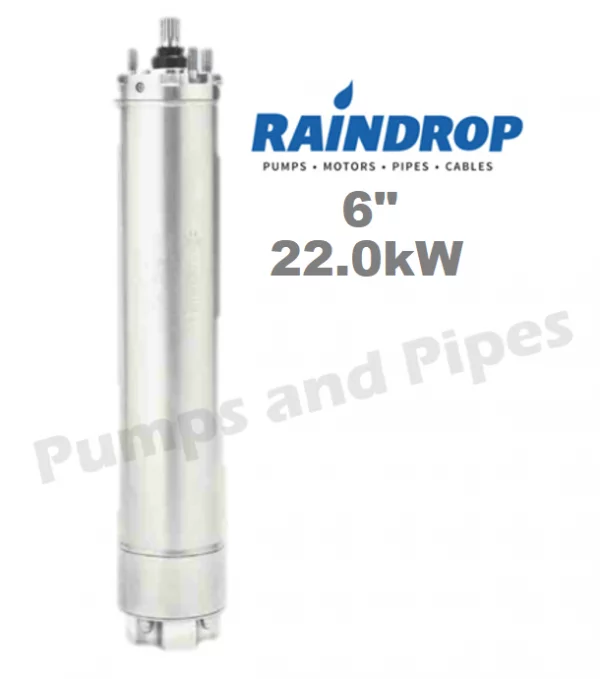

6″ 22kW 30HP Submersible Bore Pump Motor Raindrop – Suits Grundfos LOWARA Southern Cross Franklin Pump Ends

6″ 22kW 30HP Submersible Bore Pump Motor Raindrop – Suits Grundfos LOWARA Southern Cross Franklin Pump Ends

$2,940.00

In stock

$2,940.00

Reviews Summary by AI:

22.0kW 30hp three phase sub motor
6”, 415 Voltage 50hz 2900rpm water filled
NEMA standard
Stainless Steel AISI304 grade
Manufacturer’s warranty:  2 years
Will fit all major brands of submersible pump ends

SKU: 6RAIN22

Description

6″ water lubricated submersible motors

6″ RAINDROP Submersible Motors

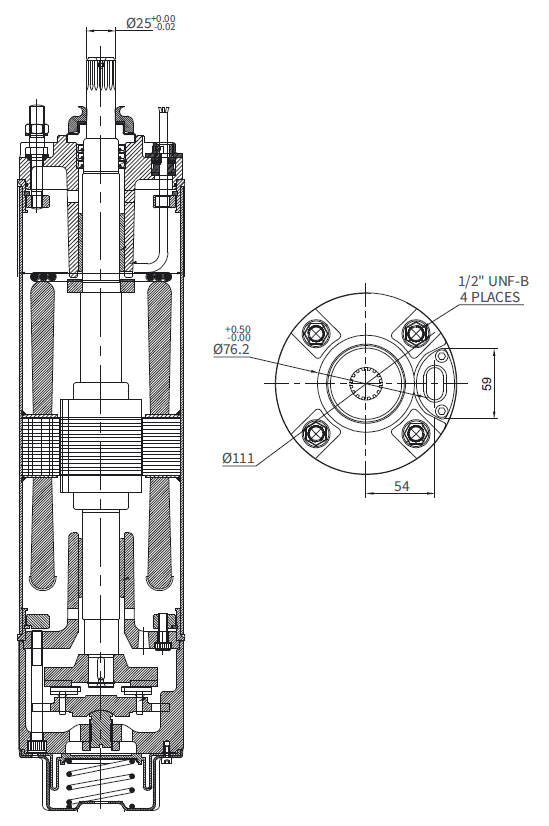

Coupling dimensions as per NEMA standard.
Degree of protection : IP68.
Max water temperature : 35° C.
Starts per hour : 10 times (Max.).
Allowable voltage variation : +6% – 10%.
Motor shaft of Stainless steel.
Stator shell of Stainless steel.
Max depth immersion : 200 meters
Mounting : vertical / horizontal.
Motor Cable length : 3 Meter / 4 Core.
Cooling Flow : V=0.2 M/S.
Coolant : Clear Water

Manufacturer’s warranty:  2 years



Additional information

Weight90 kg
Dimensions130 × 20 × 20 cm
Brand

Raindrop

SS Raindrop Sub Motor 6inch Data Sheet

Download
