HydroTron SPH90 Sub. Bore Pump – 40 lpm to 120 lpm Flow Rate – Heads up to 75 metres 0.75kW 1.1kW 2 Wire Motors

HydroTron SPH90 Sub. Bore Pump – 40 lpm to 120 lpm Flow Rate – Heads up to 75 metres 0.75kW 1.1kW 2 Wire Motors

$860.00$920.00

In stock

$860.00$920.00

Clear
View cart

HydroTron have various models and specifications in our range.
SPH90 range covers from 40lpm to 120 lpm

SPH90-750-2W    90 lpm @ 40 metres   8 stages
SPH90-1100-2W  90 lpm @ 58 metres   11 stages

Motor:  230Vac single phase 50hz
Manufacturer’s warranty: 2 years

SKU: N/A

Description

HydroTron have various models and specifications in our range.
SPH90 range covers from 40lpm to 120 lpm
SPH90 range covers from 20m head to 75m head
Pump:
SPH90-750-2W    90 lpm @ 40 metres   8 stages
SPH90-1100-2W  90 lpm @ 58 metres   14 stages

Pump outlet: 40mm Female BSP
Pump casing and shaft: 304 stainless steel
Impellers: Polymethylene
Diffusers: Polycarbonate
Mounting flange: NEMA standard motor

Motor:
Food grade oil-lubricated motor
Submergence to depths of 80 metres
Fluid temperature to 35C
Bearing capable of high trust load

Manufacturer’s warranty: 2 years

Additional information

WeightN/A
DimensionsN/A
Size

SPH90-1100-2W single phase submersible pump unit, SPH90-750-2W single phase submersible pump unit

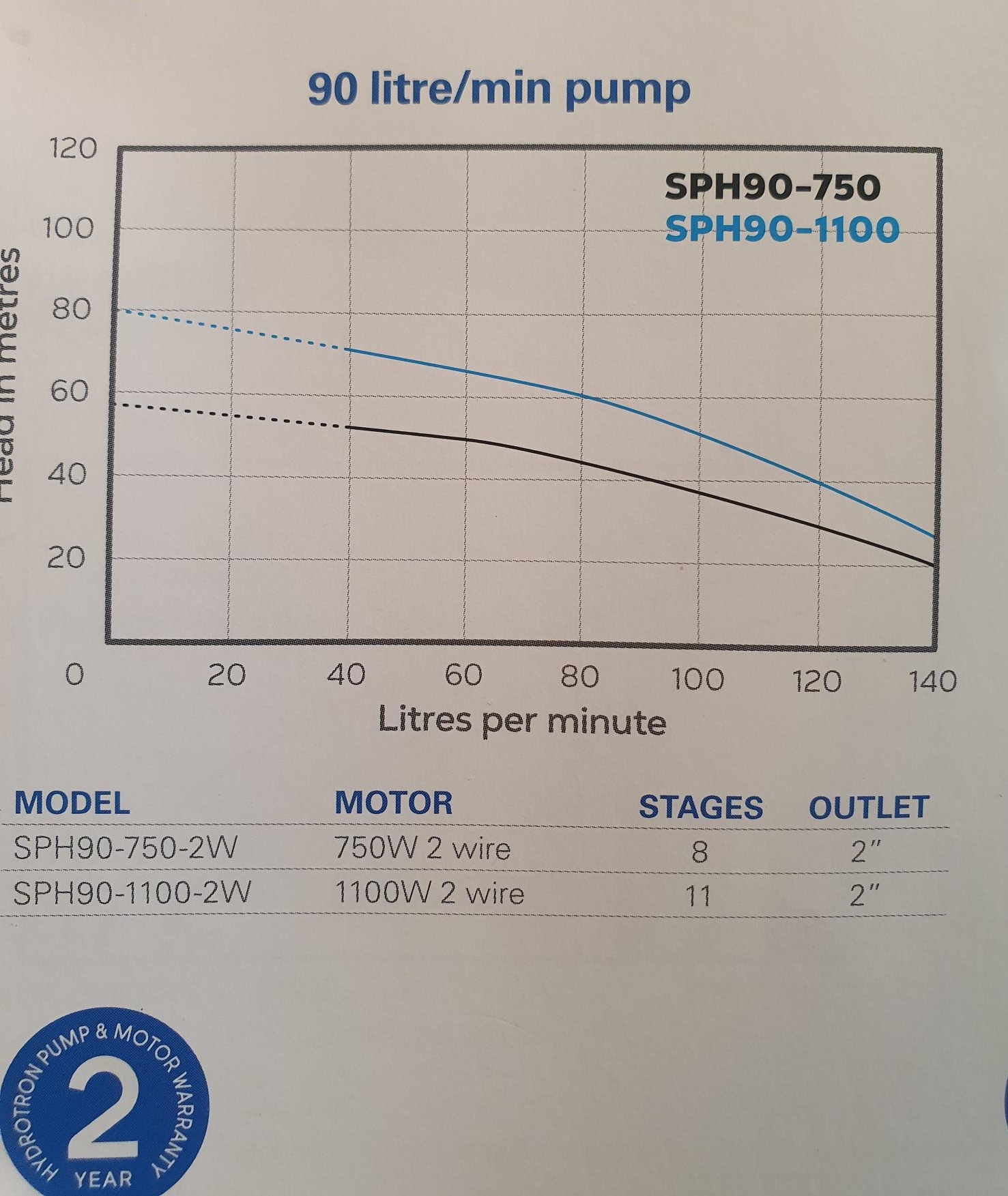

SPH90 pump curve
