HydroTron SPH30 Sub. Bore Pump – 10 lpm to 40 lpm Flow Rate – Heads up to 100 metres 0.37kW 0.55kW 0.75kW 2 Wire Motors
$940.00 – $1,120.00
HydroTron have various models and specifications in our range.
SPH30 range covers from 10lpm to 40 lpm
SPH30-370-2W 30 lpm @ 53 metres 9 stages
SPH30-550-2W 30 lpm @ 68 metres 12 stages
SPH30-750-2W 30 lpm @ 92 metres 16 stages
Motor: 230Vac single phase 50hz
Manufacturer’s warranty: 2 years
- Description
- Additional information
- Downloads
Description
HydroTron have various models and specifications in our range.
SPH30 range covers from 10lpm to 40 lpm
SPH30 range covers from 20m head to 100m head
Pump:

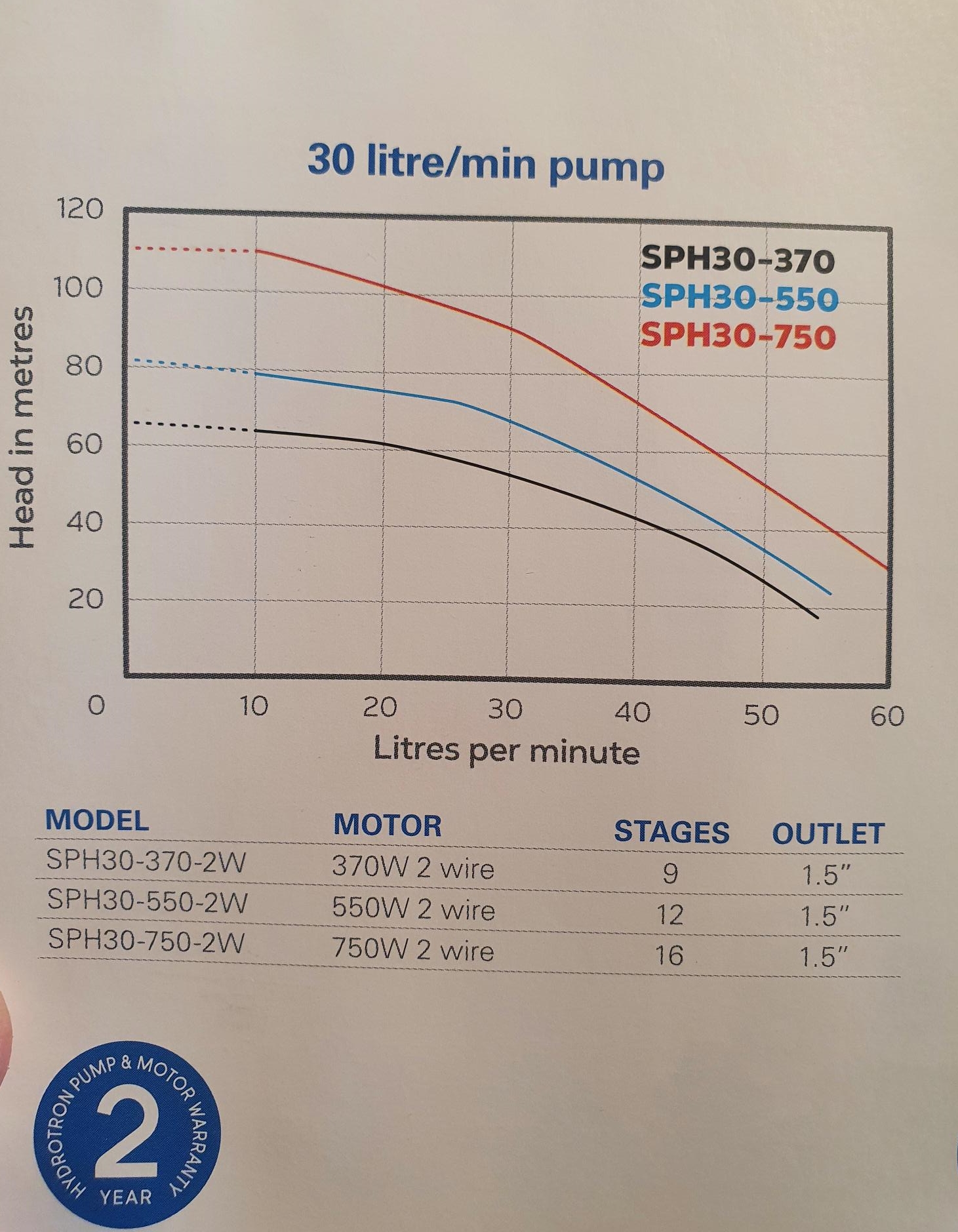

SPH30-370-2W 30 lpm @ 53 metres 9 stages
SPH30-550-2W 30 lpm @ 68 metres 12 stages
SPH30-750-2W 30 lpm @ 92 metres 16 stages
Pump outlet: 40mm Female BSP
Pump casing and shaft: 304 stainless steel
Impellers: Polymethylene
Diffusers: Polycarbonate
Mounting flange: NEMA standard motor
Motor:
Food grade oil-lubricated motor
Submergence to depths of 80 metres
Fluid temperature to 35C
Bearing capable of high trust load
Manufacturer’s warranty: 2 years
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | SPH30-370-2W single phase submersible pump unit, SPH30-550-2W single phase submersible pump unit, SPH30-750-2W single phase submersible pump unit |
