4inch 4.0kw 5.5hp Sub Motor

4inch 4.0kw 5.5hp Sub Motor

$755.00

In stock

$755.00

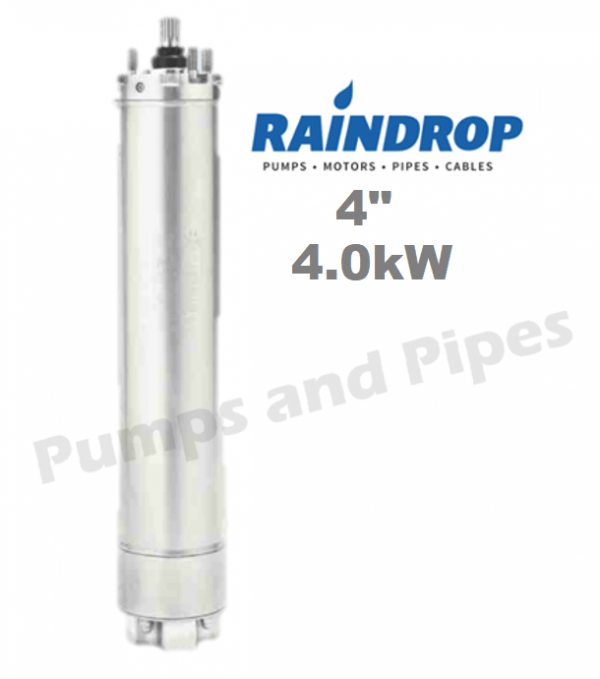

4.0kw 5.5hp three phase submersible bore motor
4”, 415 Voltage 50hz water filled
NEMA standard
Stainless Steel AISI304 grade
Manufacturer’s warranty:  2 years
Will fit all major brands of submersible pump ends

SKU: 4RAIN4.0

Description

4″ water lubricated submersible motor

4″ RAINDROP submersible bore motor
Coupling dimensions as per NEMA standard.
Degree of protection : Ip68
Max water temperature : 35° C
Start per hour : 30 time (Max.)
Allowable voltage variation +6% – 10%
Motor shaft of Stainless Steel
Stator shell of Stainless Steel
Max depth immersion : 200 meters
Mounting : vertical
Motor Cable length : 3 Meter (3 Core / 4 Core)
Coolant : Clear Water

Manufacturer’s warranty:  2 years

Additional information

Weight 34 kg
Dimensions 90 × 12 × 12 cm

SS Raindrop Sub Motor 4inch Data Sheet

Download
