HydroTron SPH30 Sub. Bore Pump – 10 lpm to 40 lpm Flow Rate – Heads up to 100 metres 0.37kW 0.55kW 0.75kW 2 Wire Motors

$940.00 – $1,120.00

In stock

$940.00 – $1,120.00

Reviews Summary by AI:

HydroTron have various models and specifications in our range.
SPH30 range covers from 10lpm to 40 lpm

SPH30-370-2W    30 lpm @ 53 metres    9 stages
SPH30-550-2W    30 lpm @ 68 metres   12 stages
SPH30-750-2W    30 lpm @ 92 metres   16 stages

Motor:  230Vac single phase 50hz
Manufacturer’s warranty: 2 years

SKU: N/A
Clear

Description

HydroTron have various models and specifications in our range.
SPH30 range covers from 10lpm to 40 lpm
SPH30 range covers from 20m head to 100m head
Pump:
SPH30-370-2W    30 lpm @ 53 metres    9 stages
SPH30-550-2W    30 lpm @ 68 metres   12 stages
SPH30-750-2W    30 lpm @ 92 metres   16 stages

Pump outlet: 40mm Female BSP
Pump casing and shaft: 304 stainless steel
Impellers: Polymethylene
Diffusers: Polycarbonate
Mounting flange: NEMA standard motor

Motor:
Food grade oil-lubricated motor
Submergence to depths of 80 metres
Fluid temperature to 35C
Bearing capable of high trust load

Manufacturer’s warranty: 2 years

Additional information

WeightN/A
DimensionsN/A
Size

SPH30-370-2W single phase submersible pump unit, SPH30-550-2W single phase submersible pump unit, SPH30-750-2W single phase submersible pump unit

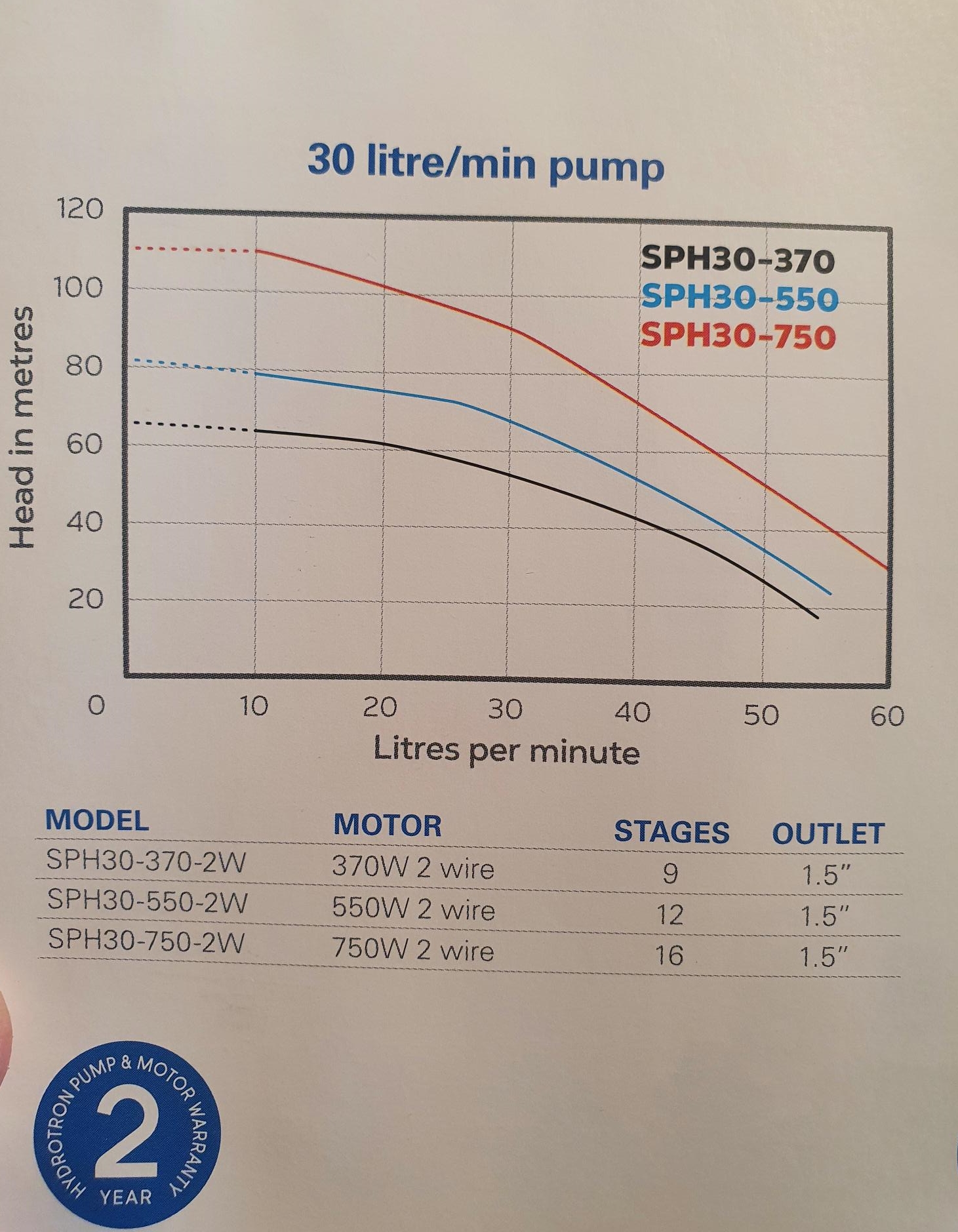

SPH30 pump curve

Download
