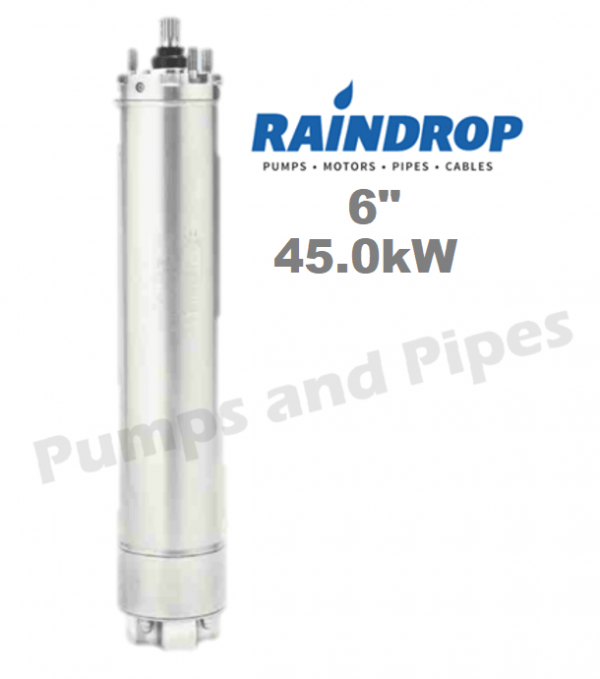

6″ 45kW 60HP Submersible Bore Pump Motor Suits Grundfos Lowara Southern Cross Franklin Pump

6″ 45kW 60HP Submersible Bore Pump Motor Suits Grundfos Lowara Southern Cross Franklin Pump

$4,830.00

In stock

$4,830.00

Reviews Summary by AI:

45.0kW 60hp three phase submersible bore motor
6” 415 Voltage 50hz 2900rpm FLC water filled
NEMA standard
Stainless Steel AISI304 grade
Manufacturer’s warranty:  2 years
Will fit all major brands of submersible pump ends

SKU: 6RAIN45

Description

6″ water lubricated submersible motor

6″ RAINDROP Stainless Steel Submersible Motors
Coupling dimensions as per NEMA standard
Degree of protection : IP68.
Max water temperature : 35° C.
Starts per hour : 10 times (Max.).
Allowable voltage variation : +6% – 10%.
Motor shaft of Stainless steel.
Stator shell of Stainless steel.
Max depth immersion : 200 meters
Mounting : vertical
Motor Cable length : 3 Meter / 4 Core.
Cooling Flow : V=0.2 M/S.
Coolant : Clear Water

Please call us to discuss the motor, electric drop cable and heat shrink (07) 3208 9499

Manufacturer’s warranty:  2 years



Additional information

Weight130 kg
Dimensions130 × 20 × 20 cm
Brand

Raindrop

SS Raindrop Sub Motor 6inch Data Sheet

Download
