Wilo Bore Pump 400gph @ 120m Three Phase

Wilo Bore Pump 400gph @ 120m Three Phase


In stock


Reviews Summary by AI:

TWI 04.02-28-BT 4” Submersible pump
1.5kW 2.0hp three phase 415Volt 50hz
32mm FI BSP outlet

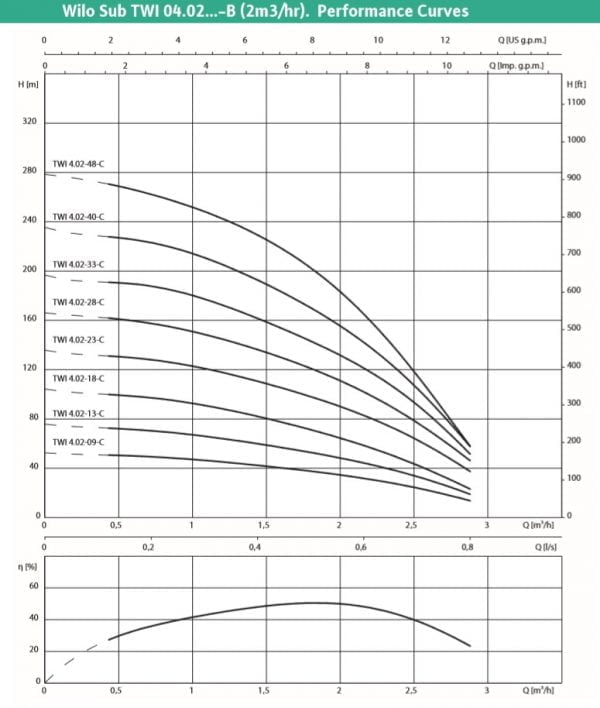

Pump performance:  30 lpm @ 120m
Inbuilt check valve
Complete AISI304 stainless

SKU: TWI040228BT


Wilo TWI 4.02-28-BT  three phase 4” Stainless Steel Submersible Pump

Pump application:  30 lpm @ 120m  or  400 gph @ 390′

  • For water and potable water supply from boreholes and rainwater storage.
  • For municipal water supply and irrigation.
  • For pumping water in industrial applications.
  • 4” Submersible multistage pump for vertical or horizontal installation

Easy installation through integrated non-return valve
Pump & Motor supplied in separate cartons for assembly on site by others- 1.7m connecting cable supplied.
3C + E motor lead existing from motor

Long service life thanks to corrosion-resistant AISI304 stainless steel
Pump unit supplied with heat shrink. Must be installed by licenced electrician

Manufacturer’s warranty:  2 years

Additional information

Weight21 kg
Dimensions120 × 12 × 12 cm


Wilo Sub TWI Borehole Brochure
