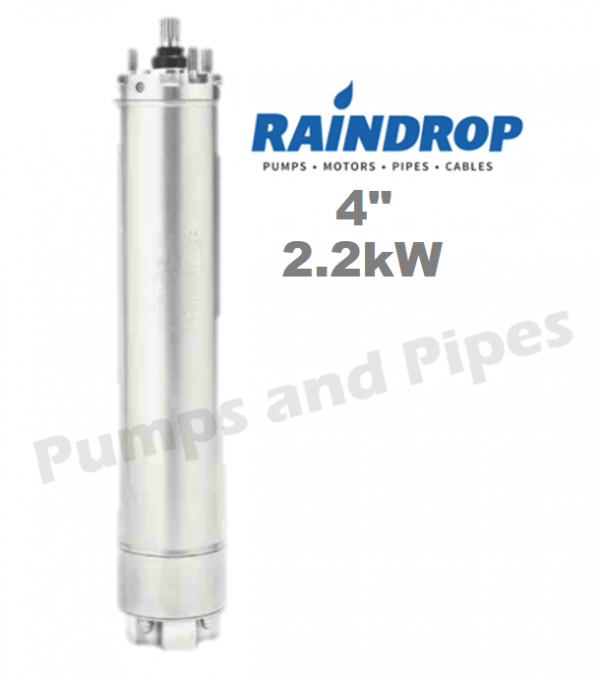

4inch 2.2kW 3.0hp Submersible Bore Motor

4inch 2.2kW 3.0hp Submersible Bore Motor


In stock


2.2kw 3.0hp three phase submersible bore motor
4”, 415 Voltage 50hz water filled
NEMA standard
Stainless Steel AISI304 grade
Manufacturer’s warranty:  2 years
Will fit all major brands of submersible pump ends



4″ water lubricated submersible motor

4″ RAINDROP submersible bore motor
Coupling dimensions as per NEMA standard.
Degree of protection : Ip68
Max water temperature : 35° C
Start per hour : 30 time (Max.)
Allowable voltage variation +6% – 10%
Motor shaft of Stainless Steel
Stator shell of Stainless Steel
Max depth immersion : 200 meters
Mounting : vertical
Motor Cable length : 3 Meter (3 Core+E)
Coolant : Clear Water

Manufacturer’s warranty:  2 years

Additional information

Weight 22.5 kg
Dimensions 60 × 12 × 12 cm


SS Raindrop Sub Motor 4inch Data Sheet
