GXVM25-6 GXVM25-8 GXVM25-10 SS Submersible Drainage Sump Pump with Float Switch – Calpeda

GXVM25-6 GXVM25-8 GXVM25-10 SS Submersible Drainage Sump Pump with Float Switch – Calpeda

$735.00$992.00

In stock

$735.00$992.00

Reviews Summary by AI:

Single-impeller submersible pumps in 304 stainless steel with vortex impeller
Automatic with vertical float
GXVM25-6  duty:  100 lpm @ 4 metres
GXVM25-8  duty:  100 lpm @ 6 metres
GXVM25-10  duty:  100 lpm @ 7 metres
Max Single Phase Motor 0.45kW FLC 4.5 amps
Manufacturer’s warranty:  2 years  Made in Italy

SKU: GXV
Clear

Description

Single-impeller submersible pumps in 304 stainless steel, with vertical delivery port and with open impeller.
Motor cooled by the pumped water passing between the motor jacket and the external jacket.
Double shaft seal with oil chamber.

GXVM25-6  performance:  100 lpm @ 4 metres
GXVM25-8  performance:  100 lpm @ 6 metres
GXVM25-10  performance:  100 lpm @ 7 metres

Single Phase Motor 0.25kW 0.6hp 230V single phase FLC 2.5 amps
Single Phase Motor 0.37kW 0.6hp 230V single phase FLC 3.5 amps
Single Phase Motor 0.45kW 0.6hp 230V single phase FLC 4.5 amps

Motor lead:  single phase 10 metres 3G 1mm2 H07RN-F with plug
APPLICATIONS

– For clean and slightly dirty water containing solids up to 25 mm grain size

OPERATING

  • Liquid temperature up to 50° C.
  • Maximum immersion depth: 5 m.

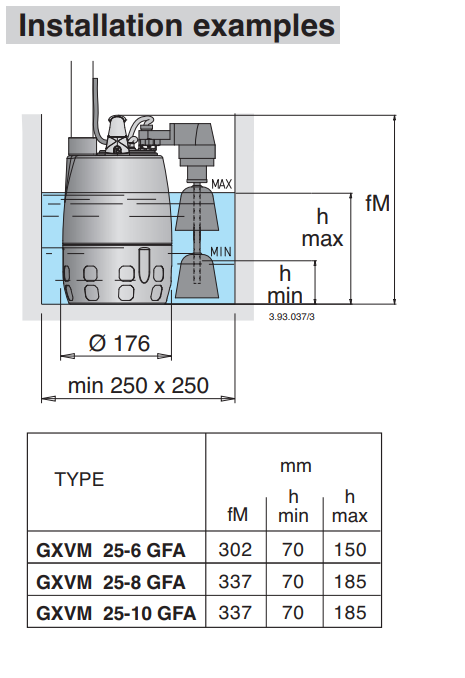

  • Minimum water level with float: 130 mm
  • Minimum water level manual operation: 30 mm
  • Continuous duty.

MOTOR

  • 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
  • Insulation class F.
  • Protection IP X8 (for continuous immersion)
  • Double impregnation humidity-proof dry winding.
  • Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41.

Manufacturer’s warranty:  2 years  Made in Italy

Additional information

Weight7 kg
Dimensions24 × 19 × 35 cm
Size

GXVM25-10 SS Submersible Sump Pump with Float Switch, GXVM25-6 SS Submersible Sump Pump with Float Switch, GXVM25-8 SS Submersible Sump Pump with Float Switch

GXR and GXV curves and technical data

Download
