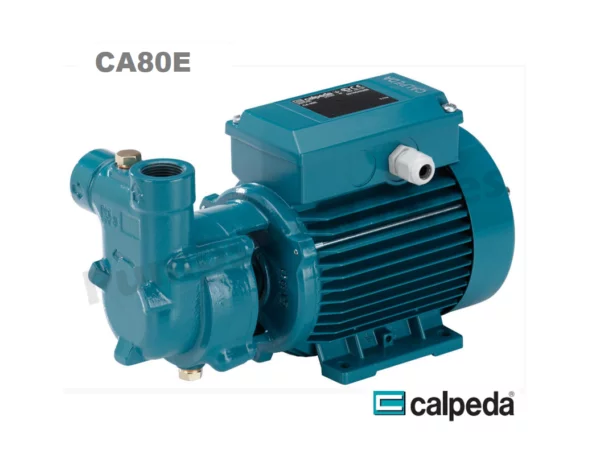

CA80E Three Phase Liquid Ring 20 lpm Gaseous or Aerated Water Pump

CA80E Three Phase Liquid Ring 20 lpm Gaseous or Aerated Water Pump

$616.00

In stock

$616.00

Applications For CA80E pump
For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials
If the liquid to be pumped has entrained air or gas or the flow in the suction pipe is not stable
Flow rate:  20 lpm @ 260 kPA
Three phase 0.45kW 400Volt FLC 1.6 amps
Close-coupled self-priming liquid ring pumps with star impeller
Manufacturer’s warranty:  2 years   Made in Italy

SKU: CA80E

Description

Applications For CA80E pumps
For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials
If the liquid to be pumped has entrained air or gas or the flow in the suction pipe is not stable

Flow rate:  10 lpm @ 330 kPA
Flow rate:  20 lpm @ 260 kPA
Flow rate:  30 lpm @ 160 kPA

Power: Three phase 400V 0.45kW FLC 1.6 amps
Liquid temperature from -10 °C to +90 °C.
Ambient temperature up to 40 °C.
Negative suction pressure up to 9 m

Construction

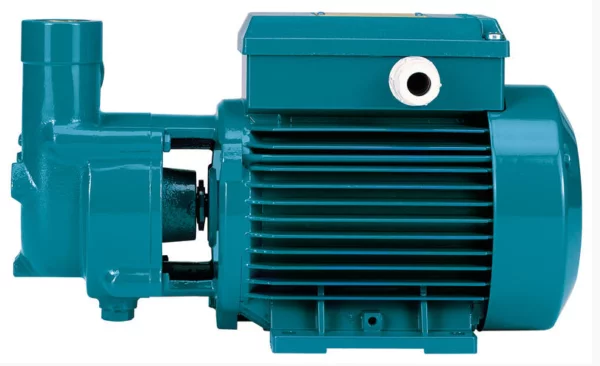

Close-coupled self-priming liquid ring pumps with star impeller
CA: version with pump casing and lanter bracket in cast iron
B-CA: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted)

Can be supplied and controlled by VFD for variable flow and pressure, please contact us

Manufacturer’s warranty:  2 years   Made in Italy



Additional information

Weight 8 kg
Dimensions 30 × 10 × 20 cm

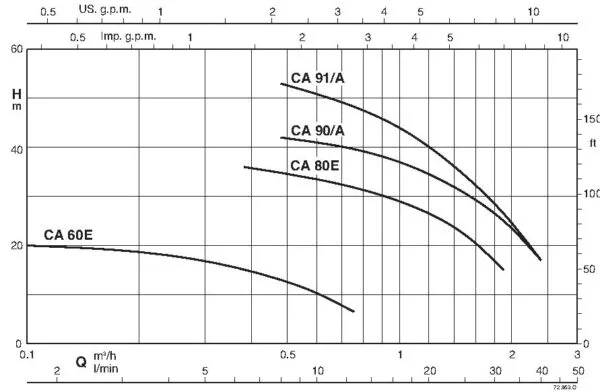

CA curve and tech data

Download
