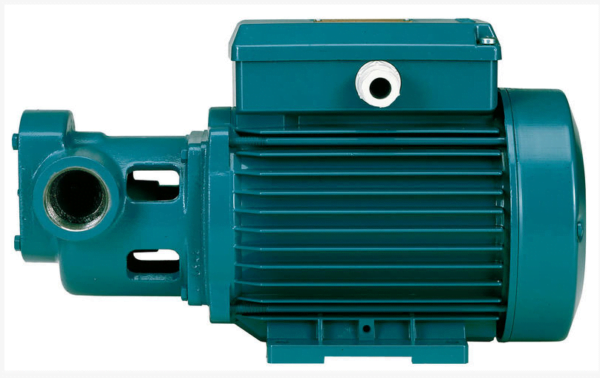

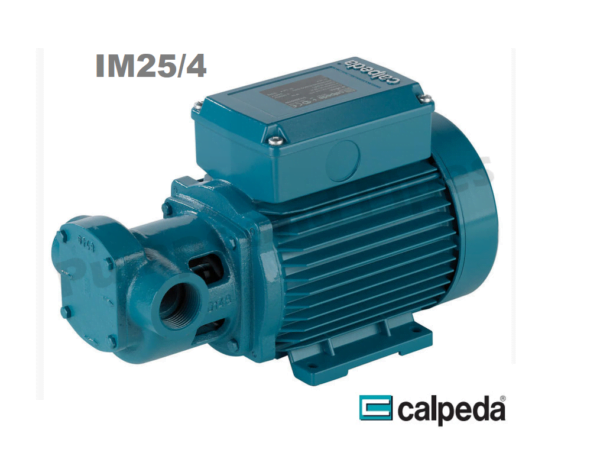

Rotary Gear Pump IM25/4 Single Phase 0.25kW Fuel Oil and Viscous Liquids – Discontinued range

Rotary Gear Pump IM25/4 Single Phase 0.25kW Fuel Oil and Viscous Liquids – Discontinued range

In stock

Reviews Summary by AI:

Close-coupled gear pumps (rotary pumps)
Flow rate:  10 lpm @ 2 bar
Pump for fuel oil and liquids with lubricating properties
Kinematic viscosity from 30 mm2/s (4°E) to 120 mm2/s (15°E)
Liquid temperature up to 90 °C
Pump connections:  25mm FI BSP
Motor: single-phase 230 V ± 10% F class IP54 rated

Manufacturer’s warranty: 2 years   Made in Italy

SKU: IM25/4

Description

Construction
Close-coupled gear pumps (rotary pumps)
Pump casing with suction and delivery connections with the same diameter and on the same axis (in-line execution)

Flow rate:  10 lpm @ 2 bar
Applications

For fuel oil and liquids with lubricating properties
Operating conditions
Kinematic viscosity from 30 mm2/s (4°E) to 120 mm2/s (15°E)
Liquid temperature up to 90 °C
Ambient temperature up to 40 °C
Total suction lift up to 4 m
Continuous duty
Pump connections: 25mm FI BSP suction and discharge
Motor
4-pole induction motor, 50 Hz (n ≈ 1450 rpm).
Motor: single-phase 230 V ± 10% F class IP54 rated

Manufacturer’s warranty: 2 years   Made in Italy

Additional information

Weight12 kg
Dimensions40 × 20 × 20 cm
Brand

Calpeda

IR technical data

Download
