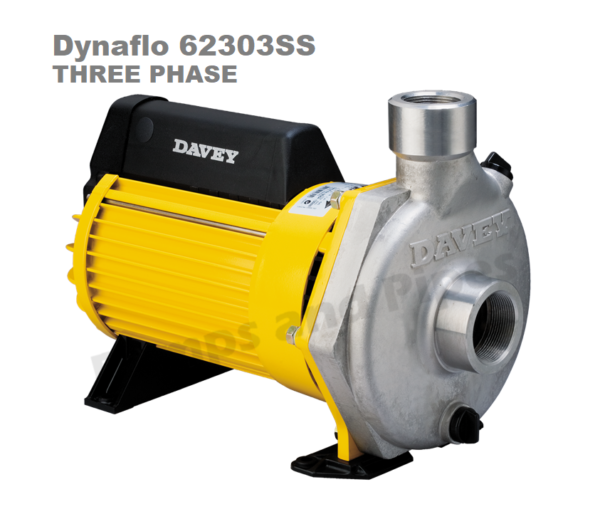

Davey 62303SS Three Phase Cast 316 Stainless Transfer Water Pump

Davey 62303SS Three Phase Cast 316 Stainless Transfer Water Pump

In stock

Reviews Summary by AI:

Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice

Dynaflo 62203SS pump is used for water transfer, wash down, tank filling and irrigation

Pump Performance:  400 lpm @ 310 kPA
Motor data:  3.0kW 400V 2pole 50hz FLC 6.3amps
Motor Draw:  FLC 6.3 amps LRC 47 amps
AISI 316 cast stainless steel
Suction 50mm FI BSP Discharge 40mm FI BSP

Manufacturer’s warranty:  2 years Made in Australia

SKU: 62203SS-1

Description

The Dynaflo 62303SS is a rugged, economical choice for larger water transfer applications. The TEFC motor and pump design handles frequent starts for a long and reliable life.
Applications include: Water Supply, water transfer, wash down, tank filling, irrigation and cooling towers

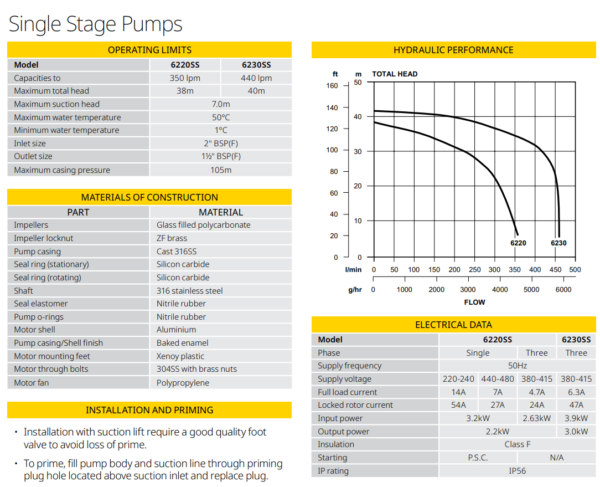

Pump Performance:  Shut off head 41 meters ( zero flow)
Flow rate:  250 lpm @ 390 kPA
Flow rate:  400 lpm @ 310 kPA

Power Requirements:  380-415 Volt three phase 50 hz
Motor data:  3.0kW 400V 2pole 50hz IP56 Class F Insulation
Motor Draw:  FLC 6.3 amps LRC 47 amps
Power lead: no lead supplied, 3C + Earth existing motor
Pump Construction:  AISI 316 cast stainless steel
Pump Connections:  Suction 50mm FI BSP Discharge 40mm FI BSP
Maximum casing pressure: 10 bar
Liquid Temperature Range: +1 deg C – +50 deg C
Maximum Suction Lift: 7 meters at sea level

Manufacturer’s warranty:  2 years Made in Australia

Additional information

Weight35 kg

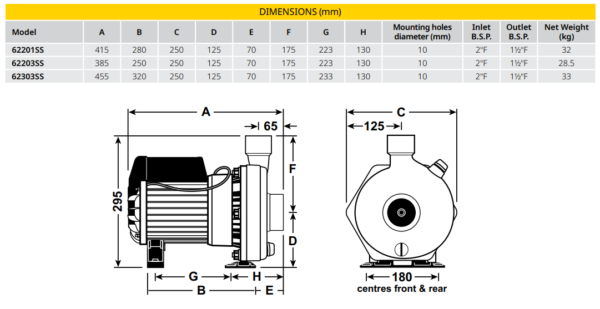

Dimensions40 × 25 × 30 cm
Brand

Davey

Dynaflow SS Data

Download

Dynaflo Instruction Manual

Download
