Description

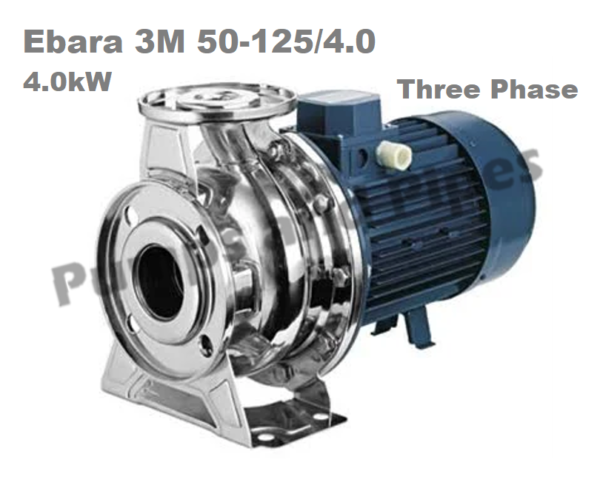

Stainless steel end suction centrifugal pump which is used for industrial and factory water transfer

Pump performance:  Shut off head 260 kPa  (35 psi) no flow maximum pressure
Pump performance: 600 lpm @ 240 kPa
Pump performance: 1000 lpm @ 180 kPa
Pump performance: 1200 lpm @ 140 kPa  end of curve

Material of construction:  SS/SS/SS
Power supply:   4.0kW 415V three phase 50hz FLC 8.0A
Impeller material: AISI304 stainless steel
Casing material: AISI304 stainless steel
Suction connection:  DIN65 Flanged
Discharge connection:  DIN50 Flanged
Starting method:  VSD or soft starter (DOL check local electrical supply)
Maximum temperature:  90 deg C

Manufacturer’s warranty:  2 years  Made in Italy
