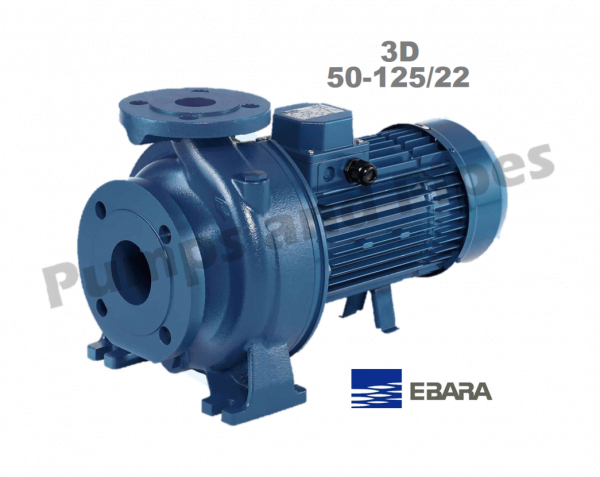

Ebara 3D 50-125/22 3HP Three Phase Centrifugal Motor Pump for Irrigation Tank Filling and Water Transfer

Ebara 3D 50-125/22 3HP Three Phase Centrifugal Motor Pump for Irrigation Tank Filling and Water Transfer

$1,420.00

In stock

$1,420.00

View cart

End suction centrifugal pump which is used for water transfer

Pump performance:  600 lpm @ 150 kPa
Material of construction:  CI/SS/SS
Power supply:   415V three phase 50hz
Impeller material: AISI304 stainless steel

Manufacturer’s warranty:  2 years  Made in Italy

SKU: 3D5012522

Description

End suction centrifugal pump which is used for water transfer, industrial and factory water transfer, air conditioning cooling tower water supply and low pressure irrigation

Pump performance:  Shut off head 190 kPa  no flow maximum pressure
400 lpm @ 160 kPa
600 lpm @ 150 kPa
800 lpm @ 120 kPa

Material of construction:  CI/SS/SS
Power supply:   415V three phase 50hz IP54
Impeller material: AISI304 stainless steel
Impeller diameter: 126mm
Suction connection:  DIN65 Flanged
Discharge connection:  DIN50 Flanged

Manufacturer’s warranty:  2 years  Made in Italy

Additional information

Weight28 kg
Dimensions50 × 40 × 40 cm
Brand

Ebara

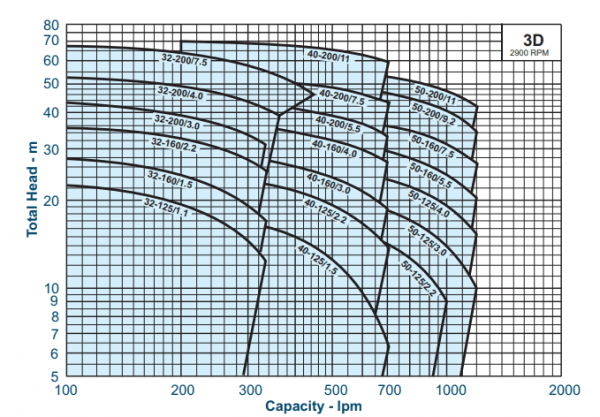

Ebara 3D 50-125-40 curve

Download

Ebara 3D Brochure

Download
