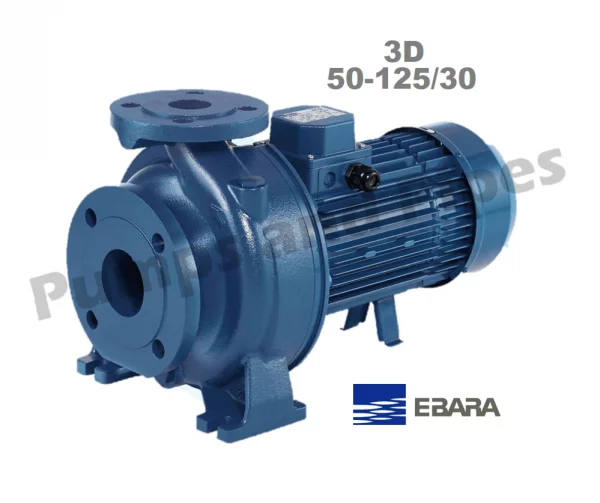

Ebara 3D 50-125/30 Three Phase Centrifugal Pump

Ebara 3D 50-125/30 Three Phase Centrifugal Pump

$1,140.00

In stock

$1,140.00

End suction centrifugal pump which is used for water transfer

Pump performance:  600 lpm @ 200 kPa
Material of construction:  CI/SS/SS
Power supply:   415V three phase 50hz
Impeller material: AISI304 stainless steel

Manufacturer’s warranty:  2 years  Made in Italy

SKU: 3D50-125/30

Description

End suction centrifugal pump which is used for water transfer, industrial and factory water transfer, air conditioning cooling tower water supply and low pressure irrigation

Pump performance:  Shut off head 220 kPa  no flow maximum pressure
600 lpm @ 200 kPa
800 lpm @ 160 kPa
1000 lpm @ 140 kPa  End of curve

Material of construction:  CI/SS/SS
Power supply:   415V three phase 50hz
Impeller material: AISI304 stainless steel
Impeller diameter: 131 mm
Suction connection:  DIN65mm Flanged
Discharge connection:  DIN50mm Flanged

Manufacturer’s warranty:  2 years  Made in Italy

Additional information

Weight 32 kg
Dimensions 50 × 40 × 40 cm

Ebara 3D 50-125-30 curve

Download

Ebara 3D Brochure

Download
