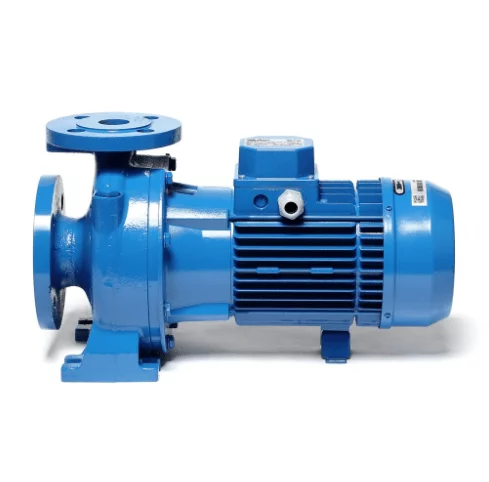

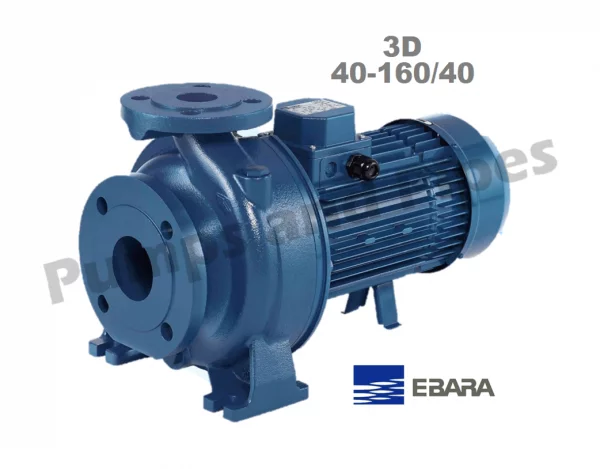

Ebara 3D 40-160/40 5.5HP End Suction Centrifugal Pump

Ebara 3D 40-160/40 5.5HP End Suction Centrifugal Pump

$1,540.00

In stock

$1,540.00

End suction centrifugal pump which is used for water transfer
Pump performance: 300 lpm @ 350 kPa

Pump performance:

600 lpm @ 290 kPa
Material of construction:  CI/SS/SS
Power supply:   415V three phase 50hz FLC 7.4A
Manufacturer’s warranty:  2 years  Made in Italy

SKU: 3D4016040
View cart

Description

End suction centrifugal pump which is used for water transfer, industrial and factory water transfer, air conditioning cooling tower water supply and low pressure irrigation

Pump performance:  Shut off head 380 kPa  no flow maximum pressure
Pump performance: 300 lpm @ 350 kPa
Pump performance: 500 lpm @ 310 kPa
Pump performance: 600 lpm @ 290 kPa

Material of construction:  CI/SS/SS
Power supply:   415V three phase 50hz FLC 7.4A
Impeller material: AISI304 stainless steel
Impeller diameter: 166 mm
Suction connection:  65mm Flanged
Discharge connection:  40mm Flanged
Temperature range:  0 – 90 degC

Manufacturer’s warranty:  2 years  Made in Italy

Additional information

Weight38 kg
Dimensions50 × 40 × 40 cm
Brand

Ebara
