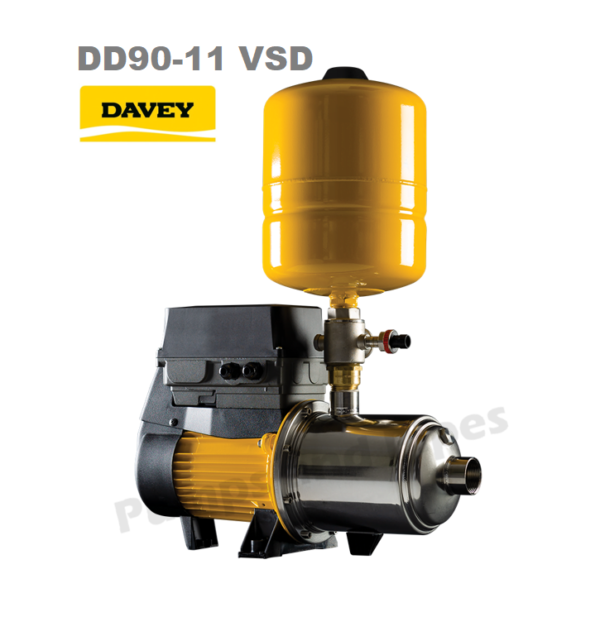

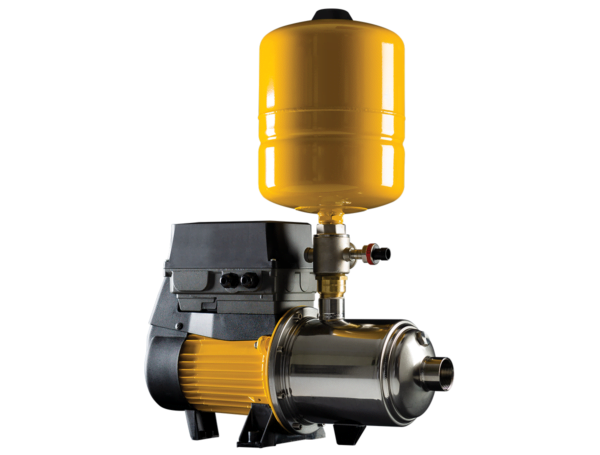

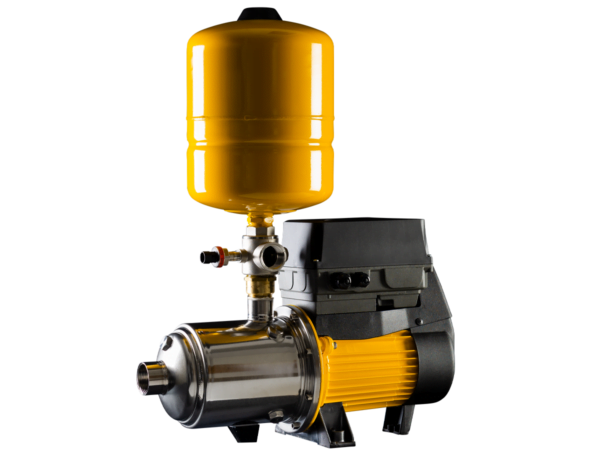

Davey DynaDrive Constant Pressure Pump DD90-11 VSD $1810.00
Due to Davey’s Pricing Policy, please call our office to discuss design and pricing
Davey DD90-11 PUMP is in stock and ready to despatch or collect at $ 1,810.00 including GST
Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice
Set pressure 400 kPa: Flow rate: 72 lpm
We can set the pressure for you or you can adjust on site to suit your water pressure
Motor details: 0.9kW single phase FLC 8.6 amps
Pump connections: 32mm FI BSP suction, 25mm FI BSP discharge
Manufacturer’s warranty: 2 years AS 4020 approved for drinking water
Please call 07 3208 9499
- Description
- Additional information
- Downloads
Description
Due to Davey’s Pricing Policy, please call our office to discuss design and pricing
Davey DD90-11 Pump is in stock and ready to despatch or collect at $1810.00 including GST
Set pressure 300 kPa: Flow rate: 92 lpm
Set pressure 400 kPa: Flow rate: 72 lpm
Set pressure 500 kPa: Flow rate: 35 lpm
We can set the pressure for you or you can adjust on site to suit your water pressure
Maximum casing pressure: 1000 kPa
Maximum set pressure with no let pressure : 500 kPa
Default cut in value: 50 kPa below set pressure
Motor details: 0.9kW 220-240Volt FLC 8.6 amps IP55
Pump connections: 32mm FI BSP suction, 25mm FI BSP discharge
Number of impellers: 5
Pump unit must be cover from weather, not for out door use
Manufacturer’s warranty: 2 years
AS 4020 approved for drinking water
Please call 07 3208 9499
Additional information
Weight | 18 kg |
---|---|
Dimensions | 60 × 30 × 40 cm |
Brand | Davey |
