Wilo HiMulti 3 C1-24 P Multistage Pump

Wilo HiMulti 3 C1-24 P Multistage Pump

$615.00

In stock

$615.00

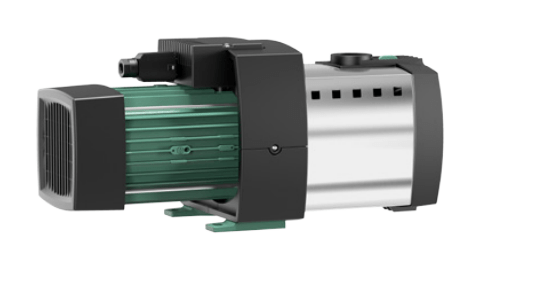

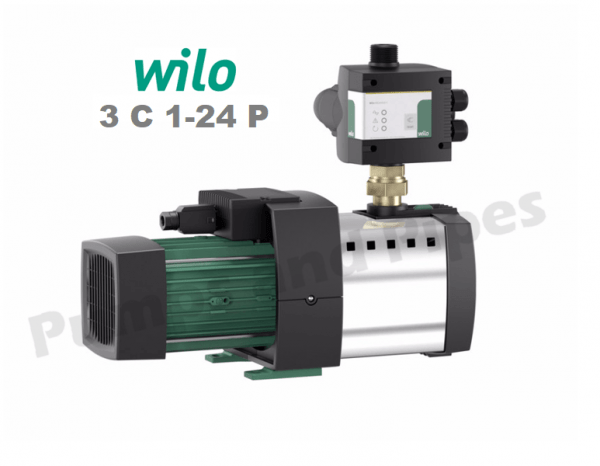

HiMulti 3C1-24P is a Multistage, horizontal centrifugal pump for domestic water supply

max working pressure 8 bar, 240 Voltage, 50Hz
0.40kW rated power, 2900 rpm

SKU: HIMULTI24

Description

Application

  • Water supply (drinking water certification in accordance with AS4020)
  • Sprinkling
  • Irrigation and spraying
  • Rainwater tanks to house hold

Special features/product advantages

  • Simple: Plug & Pump system
  • Efficient: Highly efficient hydraulics, low electricity consumption and very compact thanks to motor optimisation

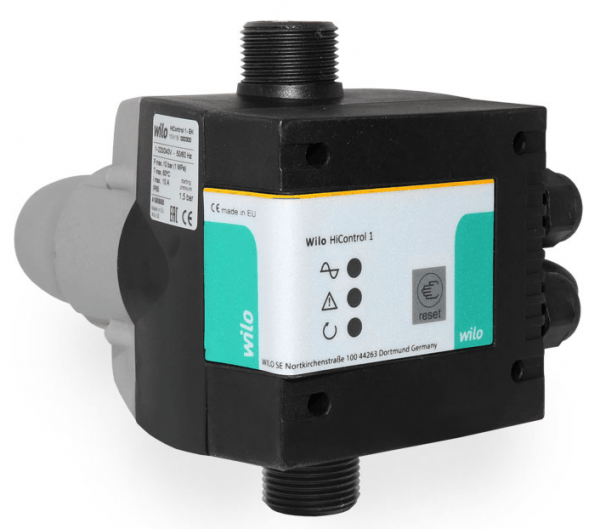

  • Automatically operating system and dry-running protection thanks to Wilo-HiControl 1
  • Low-noise: Noise level between 56 dB(A) and 64 dB(A)
  • 360° rotatable electronic pump control HiControl 1 for easy installation

Equipment/function

  • Directly flanged motor
  • Connection cable with plug
  • Thermal motor protection switch
  • Automatic pump control
  • Low-water cut-out switch

Technical data

  • Mains connection: 1~230 V, 50 Hz
  • Perm. fluid temperature: 0 °C to +40 °C (+55 °C for 10 min)
  • Perm. ambient temperature: -15 °C to +40 °C
  • Permissible storage temperature: -30 °C to +60 °C
  • Max. permissible operating pressure: 8 bar
  • Max. permissible inlet pressure: 3 bar
  • Start-up pressure: 1.5 bar
  • Switch off volume flow: 95l/h
  • Protection class: IP54
  • Suction side connection: Rp1
  • Connection on pressure side: Rp1
  • Information about the automatic can be found in the documentation for Wilo-HiControl 1

Materials

  • Pump housing in Technopolymer with ACS, WRAS and KTW drinking certifications
  • Impellers and stage casing made of Noryl 30% GF with drinking water certification in accordance with ACS, WRAS and KTW
  • Pump cover and shaft made of stainless steel
  • Mechanical seal made of ceramic/carbon
  • Housing for the pressure monitoring made of Nylon PA6 with drinking water certification in accordance with ACS

Additional information

Weight 13 kg

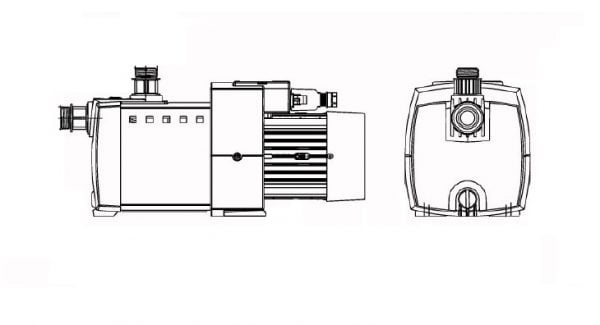

Dimensions 38 × 22 × 38 cm

Wilo HiMulti 3 Data Sheet

Download

Wilo HiControl Data Sheet

Download
