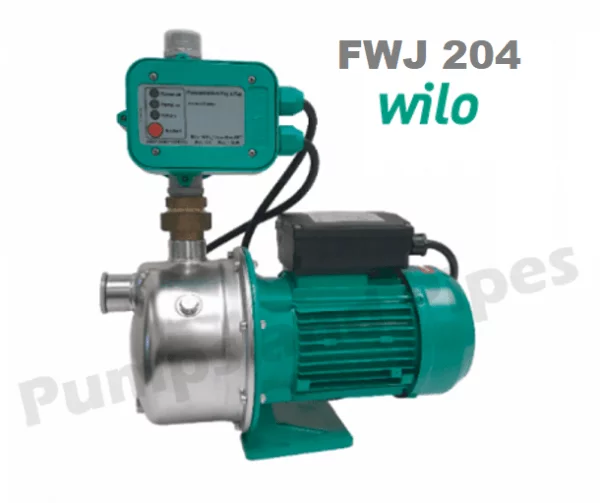

Wilo FWJ 204 Self Priming Jet Pump

Wilo FWJ 204 Self Priming Jet Pump

$400.00

In stock

$400.00

Centrifugal pump system with compact design with horizontal suction and vertical pressure port, consisting of self-priming jet pump. AC motor with built-in thermal motor protection switch and capacitor.

FWJ 204
1.10kW nominal motor power

SKU: FWJ204

Description

Application

For pumping water and rainwater from wells and tanks for:

  • House hold water supply
  • Irrigation and spraying
  • Sand Spears

FEATURES

  • Self-priming pumps and systems
  • Automatic pump control and dry-run protection via Wilo press control
  • Full stainless steel hydraulic assembly including impeller
  • Approved for potable water – AS 4020
  • Self-priming capabilities up to 8m
  • Power: 1100W

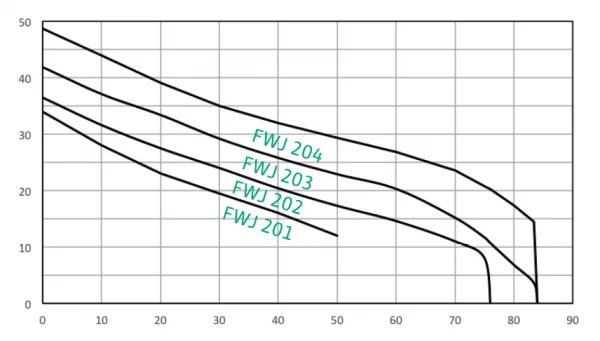

  • Max head: 49m
  • Max Flow: 83lpm
  • Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc
  • 2 Year Warranty

APPLICATION LIMITS

  • Suction head up to 8m
  • Perm. fluid temperature: +5 °C to +35 °C (+55 °C for 10 min)
  • Perm. operating pressure: Max. 6 bar

EQUIPMENT FUNCTION

  • Directly flanged motor
  • Connection cable with plug
  • Thermal motor protection
  • Automatic pump control
  • Low-water cut-out switch gear

IN THE BOX

  • 1 x Jet Pump and controller
  • 1 x User’s Manual

Additional information

Weight 12 kg

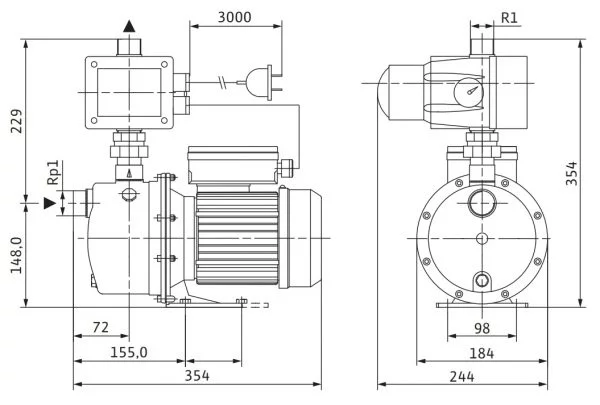

Dimensions 40 × 24 × 44 cm

Wilo FWJ Data Sheet

Download
