DAB ESYBOX VSD Home Pressure Pump Esybox – $2200.00 incl GST – Part Number 800621 – Pump Bracket 801122 – Pump Cover 807945
$210.00 – $2,200.00
• Pump performance up to 85 lpm @ 300 kPA (45 psi)
• Self priming up to 8 metres
• Dry run protection to stop pump damage if no water is present
• 2 litre expansion tank protects against thermal fluctuations and reduces pump starts
• Over/under voltage protection and over current protection
Manufacturer’s warranty: 2 years Made in Italy
- Description
- Additional information
- Specifications
- Downloads
Description

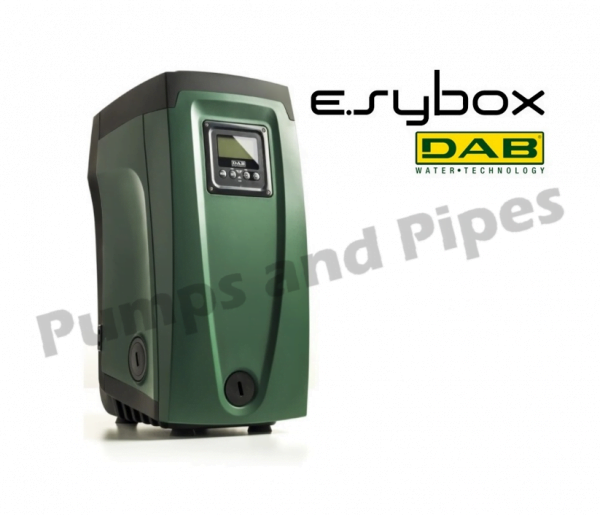

Leading the way in electronic pump technology, the E.SYBOX is a completely new solution in domestic water supply.
It is ideal for water pressure boosting in domestic and light commercial applications.

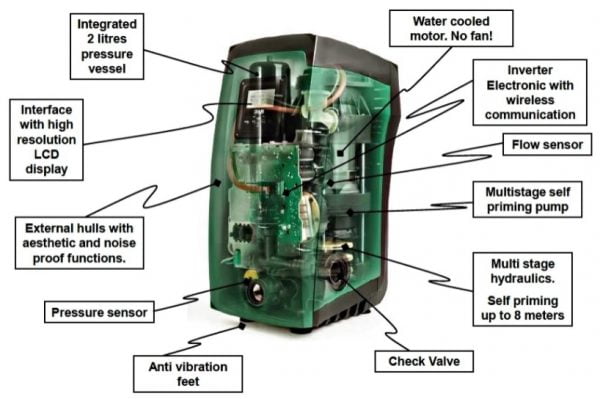

• A self-priming multistage pump
• Electronics for control and management
• Pressure and flow sensors
• High-resolution LCD display
• 2 litre integrated expansion vessel

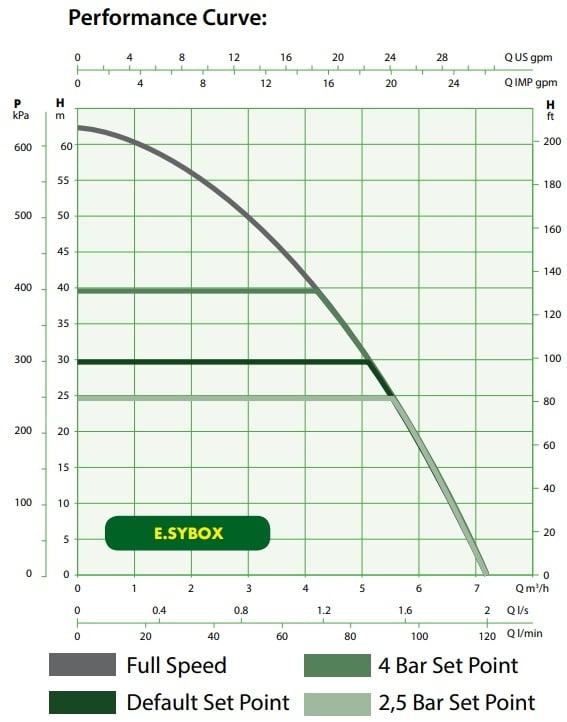

Pump performance: maximum 100 lpm @ 30 psi
Pump performance: 10 lpm @ 450 kPA or 60 psi
Pump performance: 30 lpm @ 450 kPA or 60 psi
Pump performance: 90 lpm @ 300 kPA or 45 psi
Features:
• Powerful performance flow up to 2.0 lps and head up to 6oo kPA
• Self priming up to 8 meters
• Dry run protection to stop pump damage if no water is present
• 2 Litre expansion tank protects against thermal fluctuations and reduces pump starts
• Over/under voltage protection and over current protection
• Wireless connectivity facilitates the creation of pressure booster sets and connection to other DAB devices
2 Year Parts & Labour Warranty Made in Italy
AS/NZS4020 Drinking Water Approved
Additional information
| Weight | 27 kg |
|---|---|
| Dimensions | 69 × 36 × 46 cm |
| Brand | DAB Pumps |
| Size | Esybox Esywall bracket, Esybox full pump cover in Rivergum colour, esybox screen cover, Esybox VFD pressure pump |
