Grundfos UPS 32-80N 180mm Port to Port Circulator Pump Single Phase

Grundfos UPS 32-80N 180mm Port to Port Circulator Pump Single Phase


Out of stock


Reviews Summary by AI:

The UPN circulator Pumps in stainless steel are specifically designed for household hot water systems, and solar hot water applications.

240 Voltage
180mm Port to Port

Union Set (509971) can be purchased on request.

Availability: Out of stock SKU: UPS3280


The pump is characterized by:

  • Ceramic shaft and radial bearings.
  • Carbon axial bearing.
  • Stainless steel rotor can and bearing plate.
  • Corrosion-resistant impeller, Composite, PES/PP.
  • Stainless Steel pump housing.
  • The motor is a 1-phase motor. No additional motor protection is required.


UPS pumps are designed for circulation of liquids in heating and air-conditioning systems. Pumps with bronze or stainless steel housings are also suitable for use in hot-water service systems. Examples of typical applications are:

  • One- and two-pipe heating systems
  • Main pumps
  • Zone pumps
  • Boiler shunt pumps
  • Pumps for heating surfaces
  • Calorifiers
  • Underfloor heating systems
  • Solar heating systems
  • Heat pump systems
  • Geothermal heating systems
  • Heat recovery systems
  • Two-pipe air-conditioning systems
  • Pumps for refrigeration units.

Features and benefits

  • Maintenance-free
  • Low noise
  • Low energy
  • Complete range
  • Available with corrosion-resistant stainless steel or bronze pump housing
  • Wide range of accessories.

Additional information

Weight5.1 kg

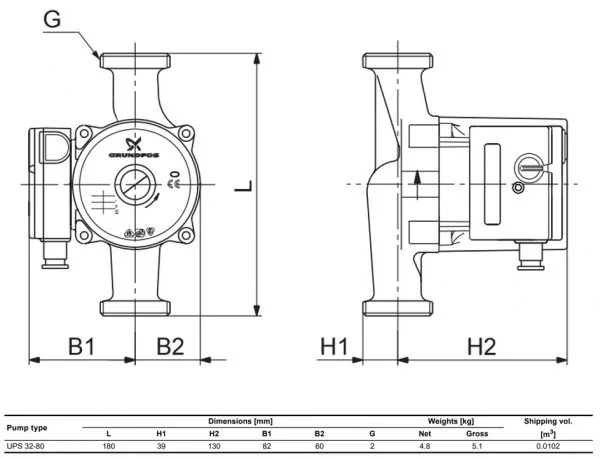

Dimensions18 × 16.9 × 39 cm


Grudfos Hot Water & Heating Brochure


UPS Installation & operating instructions
