Description

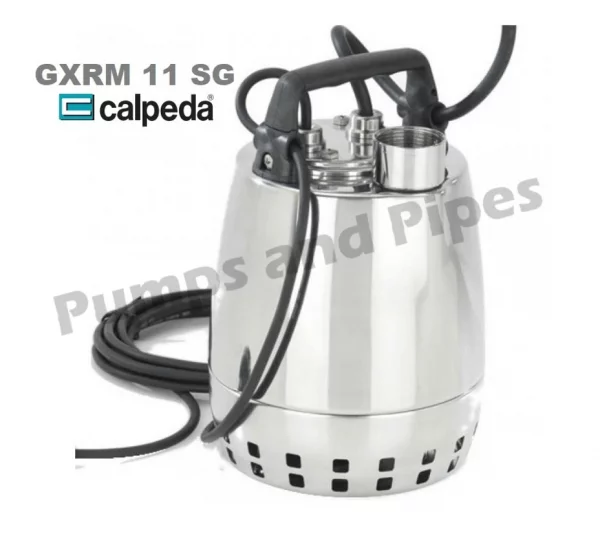

Calpeda GXRM11SG single phase sump pump

Construction
Single-impeller submersible pumps in AISI304 stainless steel, with vertical delivery port with open impeller.
Motor cooled by the pumped water passing between the motor jacket and the external jacket.
Double shaft seal with oil chamber.

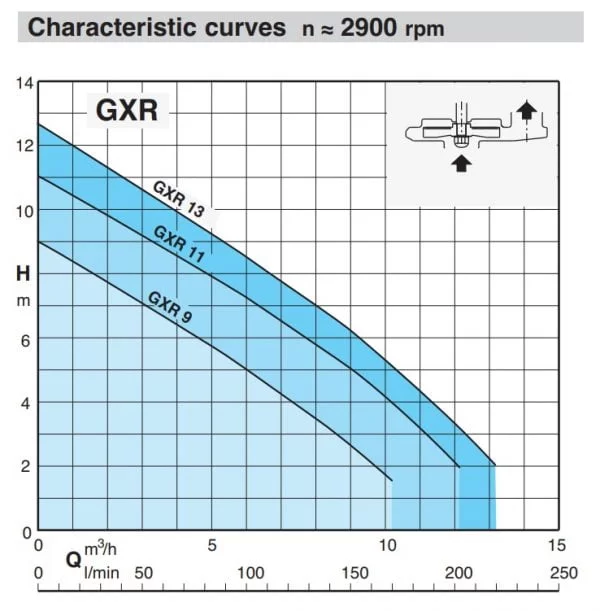

Pump performance:  60 lpm @ 8.5m

Applications
For clean water containing solids up to 10 mm grain size.

• For draining rooms or or emptying tanks.
• Extraction of water from ponds, streams or pits and for rainwater collection.
• For irrigation purposes.

For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60 335-2-41.

Operating conditions
Liquid temperature up to 50° C.
Maximum immersion depth: 5 m.
Minimum water level with float: 70 mm
Minimum water level manual operation: 15 mm
Continuous operation

Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
Single-phase 240 V, with float switch and thermal protector.
Incorporated capacitor.
Insulation class F.
Protection IP X8 (for continuous immersion)
Double impregnation humidity-proof dry winding.
Constructed in accordance with: EN 60034-1; EN 60335-1, EN 60335-2-41.

Manufacturer’s warranty:  2 years  Made in Italy
