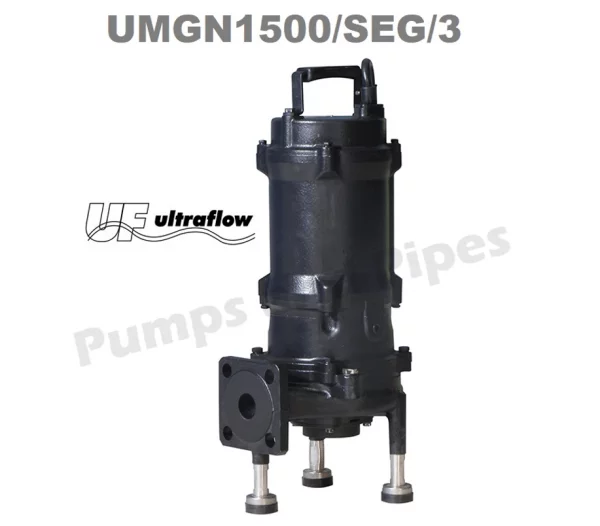

Ultraflow UMGN1500/SEG/3 Three Phase Sewage Grinder Pump

Ultraflow UMGN1500/SEG/3 Three Phase Sewage Grinder Pump

$2,070.00

In stock

$2,070.00

Model Number: UMGN1500/SEG/3
‘SEG’ indicates the outlet flange has the same dimensions as outlet flanges on Grundfos SEG grinder pumps.

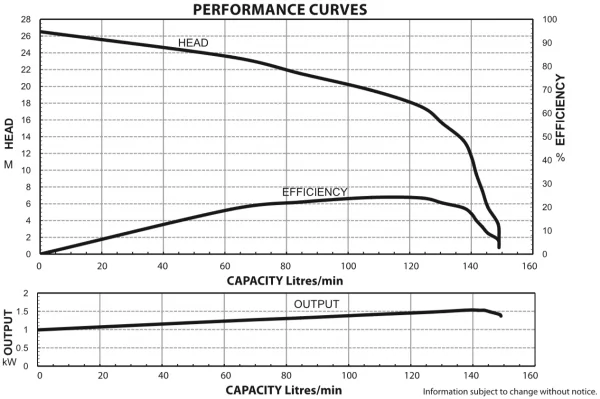

Pump performance:  1.5 lps @ 21 meters

Motor:   1.5kW 415/3/50 IP68 2 pole FLC 3.4 amps
Manufacturer’s warranty:  2 years  Made in Taiwan

SKU: UMGN1500SEG3

Description

The Ultraflow Sewage Grinder range of submersible pumps are suitable for:

  • Raw sewage transfer and Trade waste disposal
  • Grey water and septic transfers
  • Pumping liquids with soft solids

Pump performance:  1.5 lps @ 21 meters

Pump Impeller: Semi Open impeller
Pump Connection: 32mm FI BSP flanged elbow supplied
Grinder: Heat treated 440 Stainless steel
Material of Construction: Cast Iron casing and stainless steel shaft
Dual Mechanical seal: Upper Carbon/Ceramic Lower Silicon/Silicon
Motor:   1.5kW 415/3/50 IP68 2 pole FLC 3.4 amps Dry Motor
Motor Protection:  Overload cut out, auto reset
Motor cable:  H07RN-F cable 3C + E  1.5mm 3C + E 10 meters in length
Weight:  36kg

Features

  • CE& ISO 9001 certified
  • All metal construction
  • Dual mechanical seal + lip seal in oil bath
  • Silicon carbide faces to lower seal
  • Double bearing at lower end of electrical motor
  • Capacitors & relays for 240 volt models are built in motor cap
  • Can be installed with a guide rail system
  • Anti-wicking, epoxy filled cabled gland

Manufacturer’s warranty:  2 years  Made in Taiwan

Additional information

Weight 33 kg
Dimensions 25.5 × 20.3 × 54.6 cm

UMGN1500-SEG-1-UMGN1500-SEG-3 Data Sheet.pdf

Download

Ultraflow Sewage Grinders Brochure

Download
