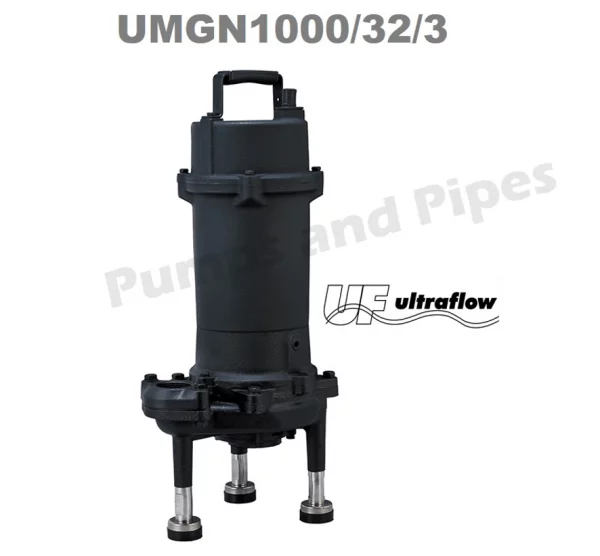

Ultraflow UMGN1000/32/3 Sewage Grinder Pump

Ultraflow UMGN1000/32/3 Sewage Grinder Pump

$1,465.00

In stock

$1,465.00

Model Number: UMGN1000/32/3

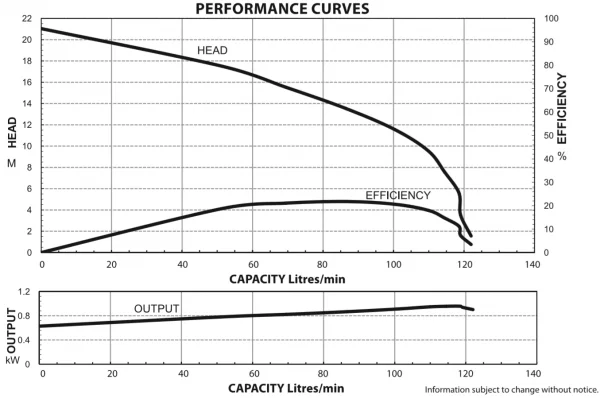

Pump performance :  duty 1.2 lps @ 14.0 meters
DOL manual pump operation
Motor:   1.0kW 415/3/50 IP68 2 pole FLC 2.3 amps
Motor Protection:  Overload cut out, auto reset
Manufacturer’s warranty:  2 years  Made in Taiwan

SKU: UMGN1000323

Description

The Ultraflow Sewage Grinder range of submersible pumps are suitable for;

  • Raw sewage transfer and trade waste disposal
  • Grey water and septic transfers
  • Pumping liquids with soft solids

Pump performance :  duty 1.2 lps @ 14.0 meters

Pump Impeller: Semi Open impeller
Pump Connection: 32mm FI BSP flanged elbow supplied
DOL Manual pump operation
Grinder: Heat treated 440 Stainless steel blades
Material of Construction: Cast Iron casing and stainless steel shaft
Dual Mechanical seal: Upper Carbon/Ceramic Lower Silicon/Silicon
Motor:   1.0kW 415/3/50 IP68 2 pole FLC 2.3 amps Dry Motor
Motor Protection:  Overload cut out, auto reset
Motor cable:  H07RN-F 1.5mm 3C + E 10 meters in length
Weight:  28 kg

Features

  • CE& ISO 9001 certified
  • All metal construction
  • Dual mechanical seal + lip seal in oil bath
  • Silicon carbide faces to lower seal
  • Double bearing at lower end of electrical motor

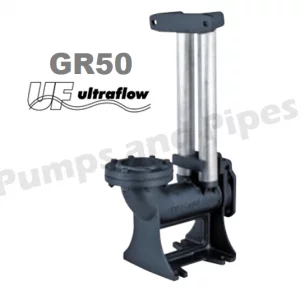

  • Can be installed with a guide rail system

Manufacturer’s warranty:  2 years  Made in Taiwan

Additional information

Weight 25 kg
Dimensions 24.9 × 17.7 × 53.0 cm

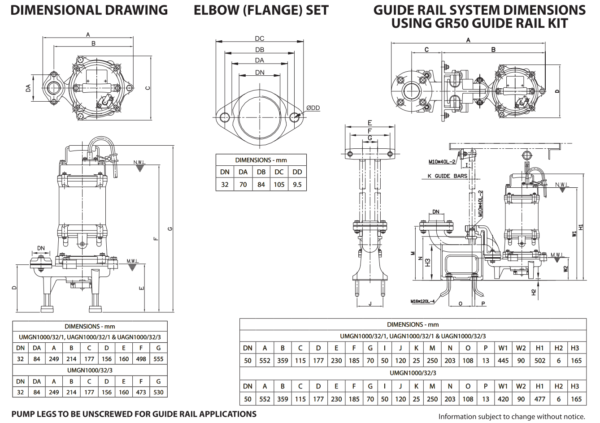

UAGN1000-32-1-UAGN1000-32-3-UAGN1000-32-1FSLC-UMGN1000-32-1-UMGN1000-32-3 Data Sheet

Download

Ultraflow Sewage Grinders Brochure

Download
