Ultraflow UAGN2200/50/3 Three Phase Automatic Sewage Grinder Pump

Ultraflow UAGN2200/50/3 Three Phase Automatic Sewage Grinder Pump

$2,210.00

In stock

$2,210.00

Model Number: UAGN2200/50/3

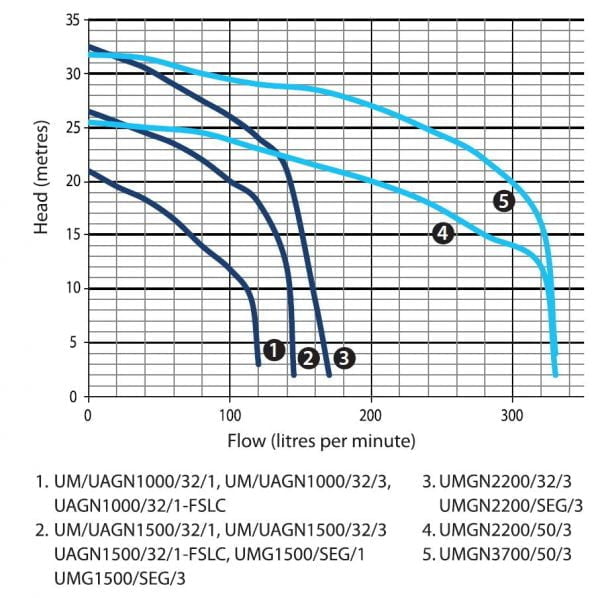

Pump performance :  3.3 lps @ 20 meters
Power: 2.2kW 415/3/50 FLC 5.2 amps DOL
Outlet: 40mm FI BSP flanged elbow
Starting method: DOL by float switch
Manufacturer’s warranty:  2 years  Made in Taiwan

SKU: UAGN2200323

Description

Ultraflow Sewage Grinder range of submersible pumps suitable for:

  • Raw sewage transfer and trade waste disposal
  • Grey water and septic transfers
  • Pumping liquids with soft solids
  • For applications with high static heads &/or long distances

Pump performance :  duty 3.3 lps @ 20 meters

Pump Impeller: Semi Open impeller
Pump Connection: 50mm FI BSP flanged elbow supplied
Grinder: Heat treated 440 Stainless steel
Material of Construction: Cast Iron casing and stainless steel shaft
Dual Mechanical seal: Upper Carbon/Ceramic Lower Silicon/Silicon
Motor:   2.2kW 415/3/50 IP68 2 pole FLC 5.2 amps Dry Motor
Motor Protection:  Overload cut out, auto reset
Motor cable:  H07RN-F cable 3C + E  1.5mm 3C + E 10 meters in length
Weight:  52kg

Features

  • CE& ISO 9001 certified
  • All metal construction
  • Dual mechanical seal + lip seal in oil bath
  • Silicon carbide faces to lower seal
  • Double bearing at lower end of electrical motor

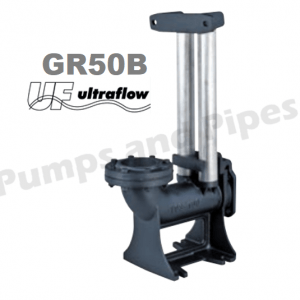

  • Can be installed with a guide rail system

Manufacturer’s warranty:  2 years  Made in Taiwan

Additional information

Weight 38 kg

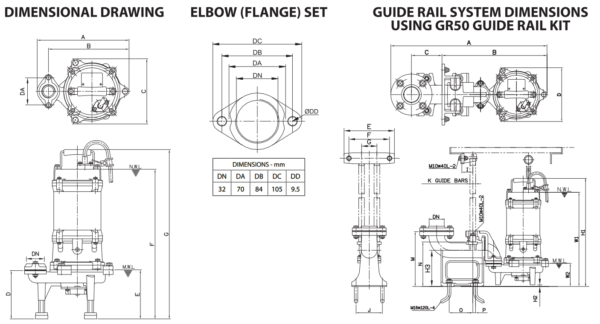

Dimensions 28.5 × 20.3 × 63.0 cm

UAGN2200-32-3-UMGN2200-32-3 Data Sheet

Download

Ultraflow Sewage Grinders Brochure

Download
