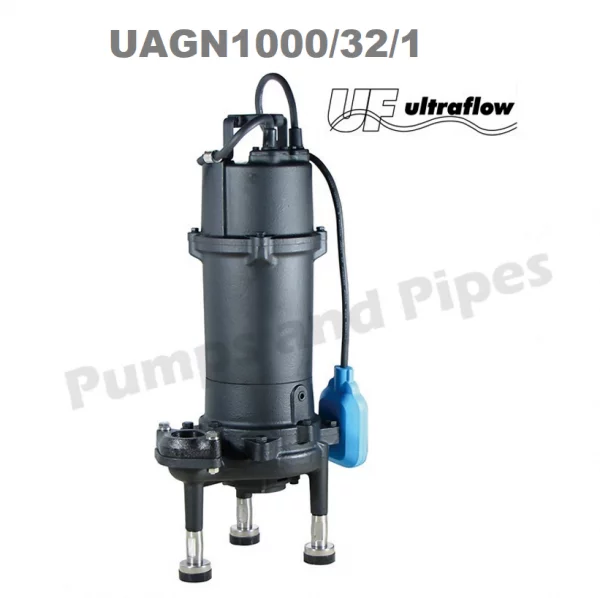

UAGN1000/32/1 UltraFlow Automatic Sewage Grinder Pump

UAGN1000/32/1 UltraFlow Automatic Sewage Grinder Pump


In stock


Model Number: UAGN1000/32/1
21m Max Head
120L/min Max Flow
1.0kW / 1.33HP Power
Single Phase, 240 Voltage
32mm Outlet Size
Float switch start method
All Ultraflow pricing to increase by 10%-15% as of July 1 2023

SKU: UAGN1000321


The Ultraflow Sewage Grinder range of submersible pumps are suitable for;

  • Raw sewage transfer
  • Light sludges and slurries
  • Trade waste disposal
  • Grey water and septic transfers
  • Pumping liquids with soft solids
  • Agricultural liquid wastes
  • For applications with high static heads &/or long distances


  • CE& ISO 9001 certified
  • All metal construction
  • Dual mechanical seal + lip seal in oil bath
  • Silicon carbide faces to lower seal
  • Double bearing at lower end of electrical motor
  • Capacitors & relays for 240 volt models are built in motor cap
  • Can be installed with a guide rail system
  • Anti-wicking, epoxy filled cabled gland

Grinder & grinding ring are heat treated stainless steel, hardened to 55-60 Rockwell ‘C’.

Additional information

Weight28 kg
Dimensions24.9 × 17.7 × 55.5 cm


Ultraflow Sewage Grinders Brochure


UAGN1000/32/1 Data Sheet
