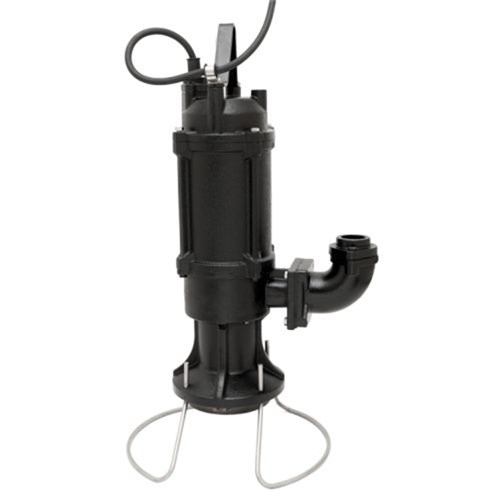

High Head Three Phase Helical Rotor Sewage Grinder Pump Up To 800 kPa

High Head Three Phase Helical Rotor Sewage Grinder Pump Up To 800 kPa


In stock


PDG Positive Displacement Grinder single and three phase pump
Pump performance :  20 lpm @ 700 kPA
1.1kW  manual and automatic versions
32mm FI Outlet Size
Manufacturer’s Warranty:  2 years



Positive Displacement Grinder range of submersible pumps are suitable for:

  • Raw sewage transfer and trade waste disposal
  • Grey water and septic transfers
  • Pumping liquids with soft solids
  • For applications with high static heads &/or long distances

Pump Performance:   20 lpm @ 700 kPA
Pump Performance:   30 lpm @ 400 kPA
Pump Performance:   35 lpm @ 300 kPA

Pump System: Cutter rings break down solids to their smallest possible size to reduce clogging
Helical rotor and stator hydraulic design
Pump Connection: 32mm FI BSP flanged elbow supplied
Material of Construction: Cast Iron casing and stainless steel shaft
Mechanical seal: Dual Silicon Carbide seal faces
Motor:   1.1kW IP68 2 pole Dry Motor Single and three phase
Motor Protection:  Overload cut out, auto reset
Motor cable:  H07RN-F cable 3C + E  1.5mm 3C + E 10 meters in length
Weight:  53kg

Manufacturer’s warranty:  2 years  Made in China

Additional information

Weight42 kg
Dimensions60 × 30 × 40 cm

1.1kW automatic, 1.1kW manual, 1.1kW three phase

PDG series tech data
