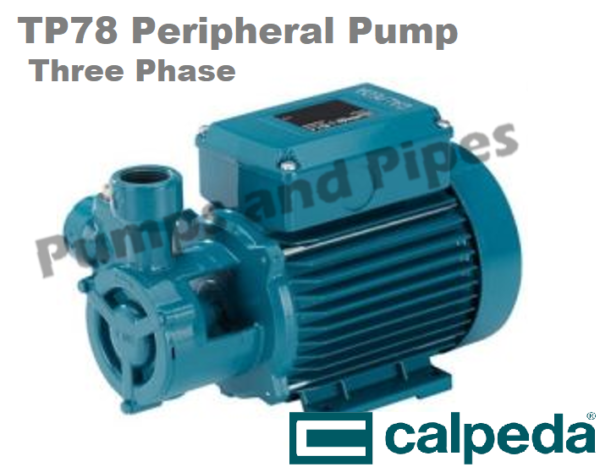

TP78 Peripheral Pump 0.37kW Three Phase TPM78 Single Phase – Low Flow Boiler Feed Or Jacking Pump

TP78 Peripheral Pump 0.37kW Three Phase TPM78 Single Phase – Low Flow Boiler Feed Or Jacking Pump

$660.00$682.00

In stock

$660.00$682.00

Reviews Summary by AI:

TPM78 Single Phase and TP78 three phase peripheral pump
0.37kw motor
Pump Performance:  5 lpm @ 550 kPa
Pump Performance:  10 lpm @ 380 kPa
Temperature range: 10 degC to 90 degC

Manufacturer’s warranty:  2 years

SKU: N/A
Clear

Description

Close-coupled peripheral pumps (regenerative pumps) with turbine impeller.

Applications
For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
These pumps are well suited to be mounted in cooling and air-conditioning applications, circulation, boiler feed and water transfer

Pump Performance:  Shut off head 800 kPa
Pump Performance:  5 lpm @ 550 kPa

Pump Performance:  10 lpm @ 380 kPa

Temperature range:  -10 degC to 90 degC

Operating conditions
Liquid temperature from -10 °C to +90 °C.
Ambient temperature up to 40 °C.
Total suction lift up to 6m.
Continuous operation @ 16 bar

Motor
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
TP78 : three-phase 400 V ± 10%  0.37 kW
TPM78: single phase 230V ± 10%  0.37 kW
Insulation class F, Protection IP 54.
Constructed in accordance with: EN 60034-1; EN 60034-30.
EN 60335-1, EN 60335-2-41.

Manufacturer’s warranty:  2 years  Made in Italy

Additional information

Weight60 kg
Dimensions50 × 40 × 40 cm
Brand

Calpeda

Size

TP78 three phase 0.37kW pump, TPM78 single phase 0.37kW pump

TP Data Sheets

Download
