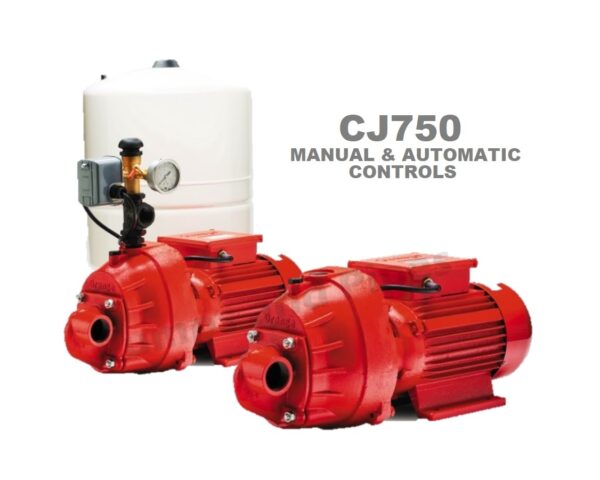

Orange CJ750 Single Phase Shallow Well Jet Pumps – Manual and Automatic Control
$1,300.00 – $1,875.00
A heavy duty pump with heavy duty motor (constructed with double race bearing on rotor)
Shallow well designed pump with different injectors for different duties
Injector SW38 … pressure switch 30 – 50 psi 115 lpm @ 30 metres
Injector SW57 … pressure switch 43 – 65 psi 65 lpm @ 40 metres
Injector SW66 … pressure switch 58 – 87 psi 30 lpm @ 50 metres
Motor single phase: 1.5kW 230/1/50 FLC 9.7A IP55
Manufacturer’s warranty: 2 years
- Description
- Additional information
- Downloads
Description
The CJ750 series has a solid cast iron constructed pump suitable for drawing water out of dams, rivers, underground well and tanks.
A heavy duty pump with heavy duty motor (constructed with double race bearing on rotor)
Shallow well designed pump with different injectors for different duties
Injector SW38 … pressure switch 30 – 50 psi
Injector SW57 … pressure switch 43 – 65 psi
Injector SW66 … pressure switch 58 – 87 psi
Motor single phase: 1.5kW 230/1/50 FLC 9.7A IP55
Maximum fluid temperature: 65 deg C
Manufacturer’s warranty: 2 years
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |

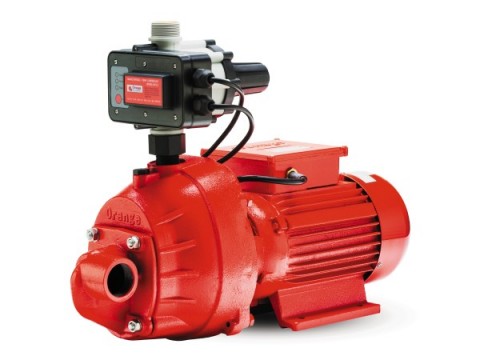

| Size | Manual pump only, Pump + 35LT tank + Water Kit, Pump + 60LT tank + Water Kit, Pump + ECL22 electronic controlled, Pump + Water Kit – brass tee, pressure switch, pressure gauge |
