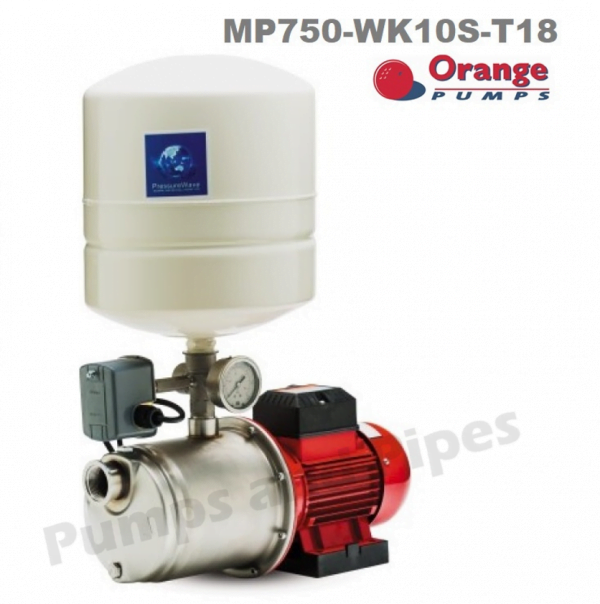

Orange Pumps MP750-WK10S-T18 Mechanical Switch System

Orange Pumps MP750-WK10S-T18 Mechanical Switch System

In stock

The MP range of pumps combined with a mechanical switch and pressure tank are a reliable, efficient and cost effective water supply solution. The wide voltage range of the motor and the simple spring relay on the mechanical switch makes this a suitable system in areas of poor electrical power supply, brown outs, spikes or prone to electrical storms.

SKU: MP750-WK10S-T18

Description

The MP range of pumps combined with a mechanical switch and pressure tank are a reliable, efficient and cost effective water supply solution. The wide voltage range of the motor and the simple spring relay on the mechanical switch makes this a suitable system in areas of poor electrical power supply, brown outs, spikes or prone to electrical storms.

The pressure tank reduces pump cycling and wear and tear on the motor caused by frequent starts. Water stored in the air charged tank can fi ll a kettle or flush a toilet. Pressure switch settings can be adjusted to increase water draw off or reduce pump cycling. Larger pressure tanks are recommended to reduce water hammering that might occur when the cut in pressure is reached and a large volume of water is supplied into the discharge pipe.

Features

  • MP Motor & Pump
  • Stainless Steel 5 way tee
  • Selection of pressure tanks
  • Pressure gauge included
  • Plug & Play electrical lead
  • Check valve, ball valve & Teflon included

Benefits

  • Ideal for industrial applications
  • Suitable for home, irrigation or farm
  • Easy to Prime
  • Non-corrosive casing, tee & internals
  • Reduces pump cycling
  • Reduces wear & tear on motor
  • Energy efficient
  • Tolerates voltage fluctuations
  • Suitable for evaporative coolers

Pressure switch setting may have to be adjusted depending upon site. Common tank and pump combinations listed. Loss of prime pressure switches are available.

Technical Details

  • Water Kit – WK10S-50
  • Tank – 18 litre
  • Pressure Setting – 30-50 psi
  • Water Draw Off – 6.0 litre

Additional information

Weight 10 kg
Dimensions 50 × 40 × 60 cm
