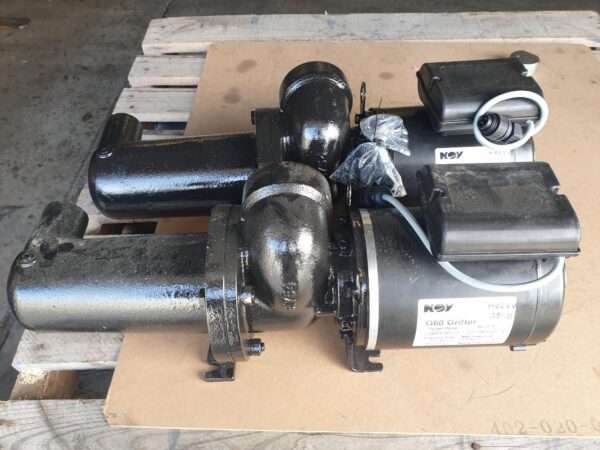

MONO G60 Grifter 240V Single and 415V Three Phase Surface Mounted Grinder Pump – Surface and Tank Mounted
$4,060.00 – $4,200.00
MONO G60 Grifter 240V & 415V pump units
Bi-Hammer Macerator smashes and shears the sewage solids into a slurry of small particles.
Progressive cavity pump transports the sewage under pressure to it’s destination.
Pump performance: 1.01lps @ 40 metres
Pump performance: 0.83lps @ 60 metres
Australian Designed & Manufactured
- Description
- Additional information
- Downloads
Description
Pump – Mono progressive cavity featuring corrosion resistant body, stainless steel rotating parts with a mechanical seal.
Macerator – Hardened tool steel “Bi-Hammer” dished macerator cutter fully integrated.
Motor – Close coupled 4 pole 0.95 kW 240 volt for domestic power supply. (Optional 415 volt)
Pump performance: 1.13lps @ 10 metres
Pump performance: 1.05lps @ 20 metres
Pump performance: 1.01lps @ 40 metres
Pump performance: 0.83lps @ 60 metres
Hardened tool steel cutter with Bi-Hammers for smashing.
Grooved chromium iron cutter ring for shredding solids.
Slow speed for longer pump life.
• Reduce wear and maintenance cost.
• Lower power consumption.
Suction 80mm BSP Female
Discharge 32mm BSP Female
Australian Designed & Manufactured
Additional information
| Weight | 38 kg |
|---|---|
| Dimensions | 50 × 30 × 30 cm |
| Size | G60 Sewage tank mounted single phase 240/1/50, G60 Surface mounted single phase 240/1/50, G60 Three phase surface mounted sewage pump 400/3/50 |
