MONO ASP440 With 2.2kW 3HP Three Phase Motor on Galvanised Base – ASP440/3PH/022

MONO ASP440 With 2.2kW 3HP Three Phase Motor on Galvanised Base – ASP440/3PH/022

$6,380.00

In stock

$6,380.00

View cart

Mono ASP Surface pumping system is designed and manufactured in Australia
This electric unit consist of a pump and stepped down pulleys on a three phase motor

Pump performance:  2,800 litres per hour @ 80 metres
Pump performance:  2,500 litres per hour @ 120 metres
Pump performance:  2,100 litres per hour @ 200 metres

Pump speed:  800 rpm Motor speed 1450 rpm
Motor details:  2.2kw 1450rpm IP56 FLC 3.8 amps 415/3/50
Pump connections –  40mm (1 1/2″)
Galvanised steel base

SKU: ASP440/3PH/022

Description

Mono Agricultural Surface Pump is a water transfer pump and has been designed to pump water from rivers, dams or tanks to a desired location.

Mono ASP Surface pumping system is designed and manufactured in Australia
This electric unit consist of a pump and stepped down pulleys on a three phase motor

Pump performance:  2,800 litres per hour @ 80 metres head
Pump performance:  2,500 litres per hour @ 120 metres head
Pump performance:  2,100 litres per hour @ 200 metres head

Pump speed:  800 rpm Motor speed 1450 rpm
Motor details:  2.2kw 1450rpm IP56 FLC 3.8 amps 415/3/50
Suction and discharge connections –  40mm (1 1/2″) Female BSP Internal Thread
Galvanised steel base

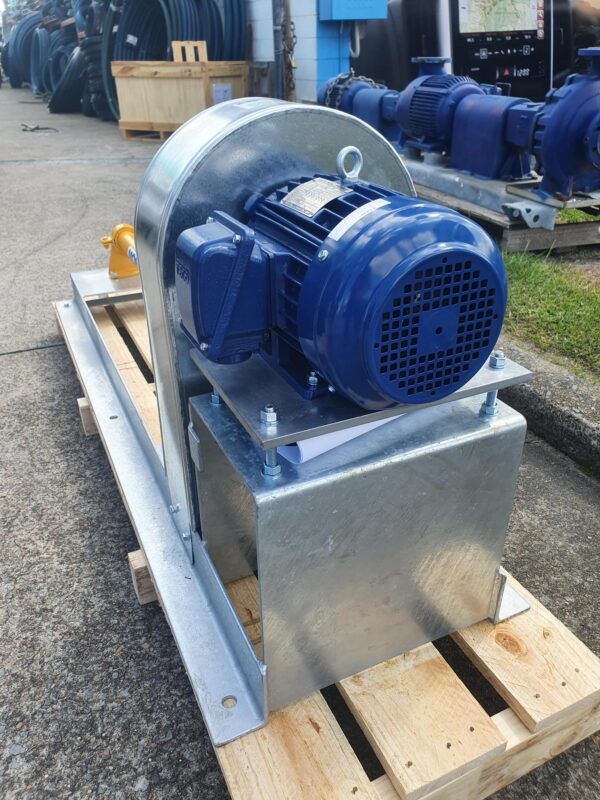

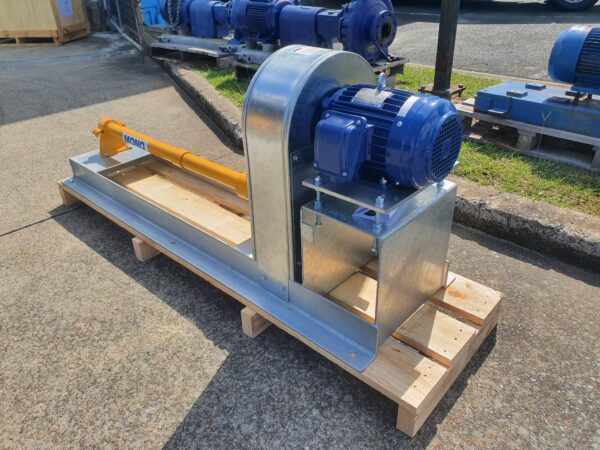

The pump in the photo is being used on a high head solar application pumping out of a creek.
The water tank is situated high on a mountain side and pump is controlled by a solar inverter

Manufacturer’s warranty:  2 years

Additional information

Weight140 kg
Dimensions200 × 50 × 100 cm
