Mono ASP310 ASP320 ASP410 ASP420 ASP440 ASP520 ASP620 Bare Shaft Pump – ASP510 and ASP610 Obsolete

Mono ASP310 ASP320 ASP410 ASP420 ASP440 ASP520 ASP620 Bare Shaft Pump – ASP510 and ASP610 Obsolete

$2,290.00$3,480.00

In stock

$2,290.00$3,480.00

Clear
View cart

Mono Agricultural Surface Pump is a water transfer pump and has been designed to pump water from rivers, dams or tanks to a desired location.

Mono ASP Surface pumping system is designed and manufactured in Australia
Mono electric units consist of a pump and a direct coupled single phase electric motor

Suction and discharge –  40mm (1 1/2″) Female BSP Internal Thread
Manufacturer’s warranty:  2 years   Made in Australia

SKU: ASP310

Description

Mono Agricultural Surface Pump is a water transfer pump and has been designed to pump water from rivers, dams or tanks to a desired location.
Mono ASP Surface pumping system is designed and manufactured in Australia.
Mono Pumps ASP has been design tested and proven in the field over a wide range of water pumping applications.
Mono electric units consist of a pump and a direct coupled single phase electric motor, for easy installation and maintenance

SPECIFICATIONS
Operating Temperature: -10 to 40 deg C
pH range 6 to 8.5
Hardness Range 2000 mg/L
Salt Concentration 500 ppm

Rotor Selection – Water Temperature
Rotor Standard 10 to 40 deg C
Rotor Mk 3 40 to 70 deg C

Mechanical Specification
Suction –  40mm (1 1/2″) Female BSP Internal Thread
Outlet –  40mm (1 1/2″) Female BSP Internal Thread

Direction of Rotation
Anticlockwise when viewed from the motor or bearing housing end.

Materials (Excluding Motor)
Pump Barrel: 304 Stainless Steel
Stator: Natural rubber lining
Rotor: 316 stainless steel
Hard Chrome Plated
Flexishaft: Titanium
Mechanical seal: Carbon/Ceramic/Nitrile:
Mechanical seal holder: 304 Stainless Steel
Discharge Chamber: Cast Iron

Electric Motor
Voltage 240 Volts AC +/- 5%, IP55, TEFC
Maximum Motor Starts per hour: 10
Motor fitted with thermal cut out with manual reset
Note: that if the ambient temperature exceeds 30 deg C it is recommended that the stator and motor be protected from direct sunlight with a well ventilated cover.

Maximum Design Pump Pressure
ASP – 1200 kPa

Note: Pumps are capable of much higher pressure if flow of pump is reduced. Running at over design pressure will reduce the life of the pump.

Manufacturer’s warranty:  2 years   Made in Australia





Additional information

Weight60 kg
Dimensions150 × 30 × 40 cm
Size

ASP310 bare shaft pump, ASP320 bare shaft pump, ASP410 bare shaft pump, ASP420 bare shaft pump, ASP440 bare shaft pump, ASP520 bare shaft pump, ASP620 bare shaft pump

ASP dimensions

Download

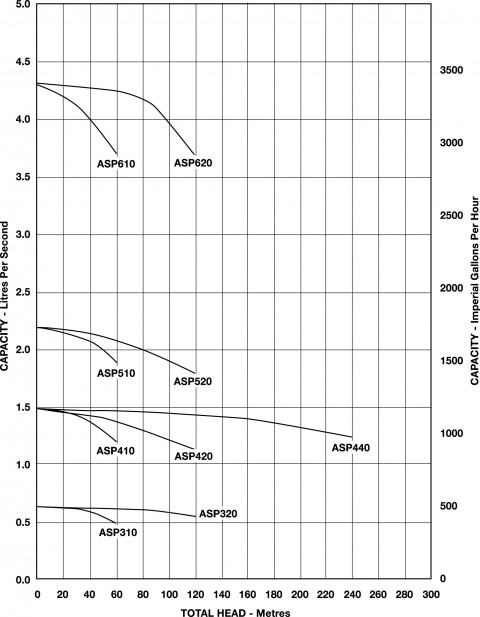

ASP pump curves

Download
