Description

Mono ASP320 is a water transfer pump and has been designed to pump water from rivers, dams or tanks to a desired location.
Mono ASP320 Surface pumping system is designed and manufactured in Australia.
Mono Pumps ASP has been design tested and proven in the field over a wide range of water pumping applications.
Mono electric units consist of a pump and a direct coupled single phase electric motor, for easy installation and maintenance

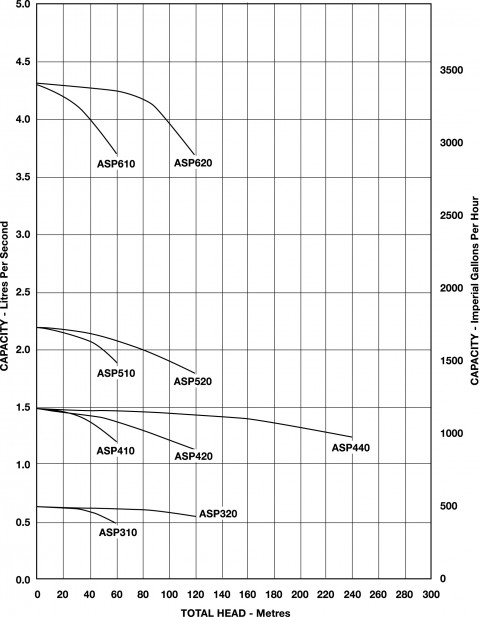

Pump performance:   25 lpm @ 60 metres   (330 gph)
Specifications
Operating Temperature: -10 to 40 deg C
pH range 6 to 8.5
Hardness Range 2000 mg/L
Salt Concentration 500 ppm

Rotor Selection – Water Temperature
Rotor Standard 10 to 40 deg C
Rotor Mk 3 40 to 70 deg C

Mechanical Specification
Suction –  40mm (1 1/2″) Female BSP Internal Thread
Outlet –  40mm (1 1/2″) Female BSP Internal Thread

Direction of Rotation
Anticlockwise when viewed from the motor or bearing housing end.

Materials (Excluding Motor)
Pump Barrel: 304 Stainless Steel
Stator: Natural rubber lining
Rotor: 316 stainless steel
Hard Chrome Plated
Flexishaft: Titanium
Mechanical seal: Carbon/Ceramic/Nitrile:
Mechanical seal holder: 304 Stainless Steel
Discharge Chamber: Cast Iron

Electric Motor
Voltage 240 Volts AC +/- 5%, IP55, TEFC
Maximum Motor Starts per hour: 10
Motor fitted with thermal cut out with manual reset
Note: that if the ambient temperature exceeds 30 deg C it is recommended that the stator and motor be protected from direct sunlight with a well ventilated cover.

Maximum Design Pump Pressure
ASP320MR6- 600 kPa

Note: Pumps are capable of much higher pressure if flow of pump is reduced. Running at over design pressure will reduce the life of the pump.

Manufacturer’s warranty:  2 years   Made in Australia
