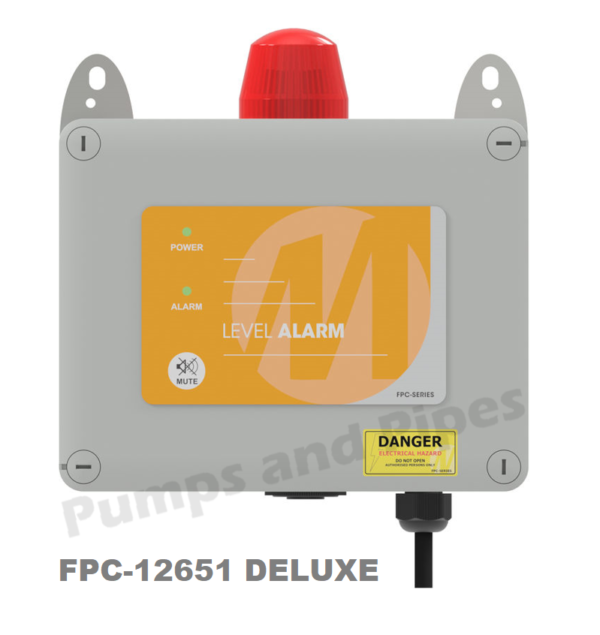

Liquid Level Alarm Panel – Single Phase 240V Model FPC-12651 Deluxe + Float Options – Low or High Level

Liquid Level Alarm Panel – Single Phase 240V Model FPC-12651 Deluxe + Float Options – Low or High Level

$308.00$398.00

In stock

$308.00$398.00

Reviews Summary by AI:

Level alarm – Provides warning indication and alarm when a water storage tank is empty or full
Auto-silencing alarm – If not muted, the buzzer will silence after 5 minutes, then sound briefly every 5 minutes (this feature can be disabled if a continuous alarm is required)

Float switch not included as standard, however float options are available

SKU: FPC-12651
Clear

Description

Level alarm – Provides warning indication and alarm when a water storage tank is empty or full
Auto-silencing alarm – If not muted, the buzzer will silence after 5 minutes, then sound briefly every 5 minutes (this feature can be disabled if a continuous alarm is required)

Product Features

Enclosure:   IP54 rated, poly carbonate enclosure
Protection:    Low voltage control and input circuitry
Control & interface:   Audible (buzzer) alarm and visual strobe
Level alarm keypad interface: Indicator lights for power on, level alarm
Alarm mute/reset/test button
Level alarm PCB control module
Inputs:  Single phase (230Vac) power supply
Digital 12Vdc input for float switch or conductivity probes
Outputs:  BMS volt free output for common fault (NO & NC)
Included with panel:  10 Amp 3 pin 1m power supply lead (230Vac)

Float switch not included as standard, however float options are available

Manufacturer’s warranty:  12 months

Additional information

Weight3 kg
Dimensions24 × 24 × 15 cm
Size

FPC-12651 + 10 metre float, FPC-12651 + 20 metre float, FPC-12651 + 5 metre float, FPC-12651 standard no float

FPC-12651 Specification sheet

Download

FPC-12651 Operation manual

Download
