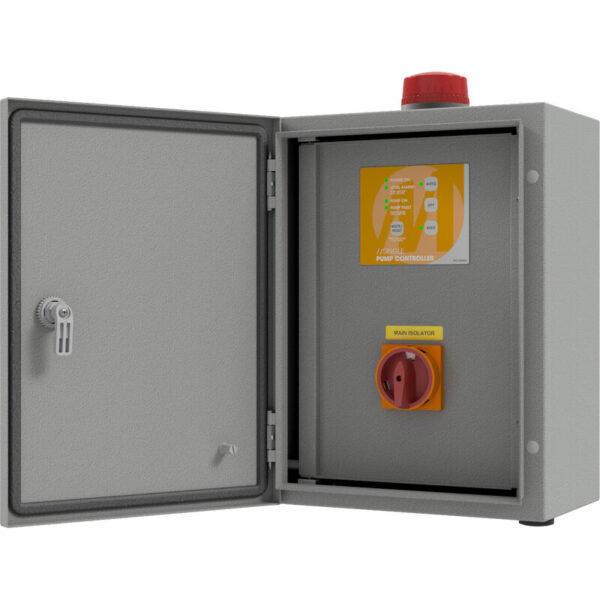

Single Phase Sewage Pump Control Panel – Model FPC-15005 Supply 240/1/50 With Inner Door – Single Pump Controller

Single Phase Sewage Pump Control Panel – Model FPC-15005 Supply 240/1/50 With Inner Door – Single Pump Controller

$1,190.00

In stock

$1,190.00

Reviews Summary by AI:

Matelec Single pump control panel with controls on inner door

Single phase DOL starting up to 2.2kW single pump
Mains isolation, individual CB and indication lights
Audible and visual alarm, float switches for level control

Out door installation, must be installed by Electrician

SKU: FPC-30040
Clear

Description

DOL control panel for one submersible pump  (either sewage, trade waste or storm water)
Control panel can be installed out doors

  •  Enclosure:
    • IP56 weatherproof rating
    • Powder coated mild steel
    • Inner door and removable gland plate
  • Protection:
    • Pad lockable mains power isolator switch
    • Circuit breaker protected low voltage control and input circuitry
    • Individual pump isolation
    • Contactor and thermal overload protection of pumps
    • Electronic short and overload protection of strobe/buzzer
  • Alarms:
    • Visual (strobe) and audible (buzzer) alarms
  • Control & interface:
    • Electronic Keypad
    • Indicator lights for power on, level alarm, pump run/fault
    • Visual and audible alarm mute/reset/test button
    • Auto/off/manual operation of pumps
    • Dip switches for input and operation configuration
  • Inputs:
    • 4 x digital 12Vdc inputs for float/pressure/flow switches
    • Standard terminal setup: Low level, pump stop, pump start and high level float switches
  • Outputs:
    • 1 x pump supply output
    • 1 x BMS volt free output for common fault

Manufacturer’s warranty:  12 months , call us for more details, servicing or custom builds

Additional information

Weight12 kg
Dimensions32 × 22 × 48 cm
Brand

Matelec

Size

0.1-6.0 Amp single pump controller with inner door, 12-18 Amp single pump controller with inner door, 5.0-16 Amp single pump controller with inner door

FPC-15005 manual

Download

FPC-15005 brochure

Download
