Description

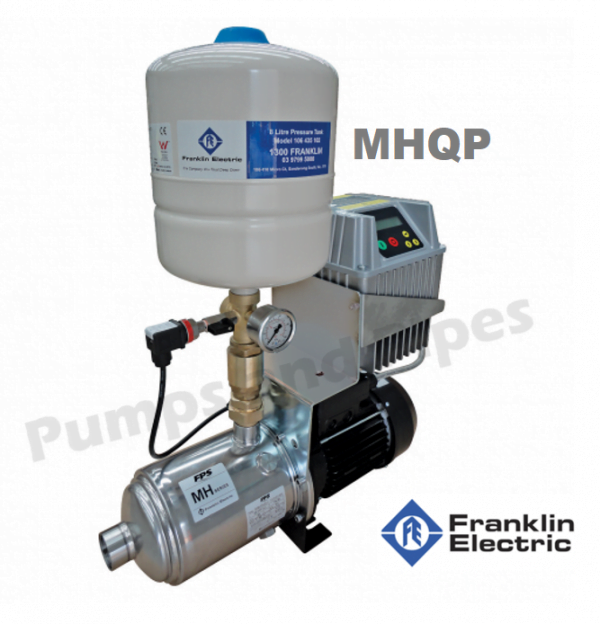

Franklin MHQP VSD Pump Unit can be used in many application where constant water pressure is required over a wide range of flow rates. A Single pump unit with flows up to 120 lpm at a pressure of 600 kPA

• Boosting, Water Transfer and domestic water supply
• Commercial Sprinkler Systems
• Industrial and wash down

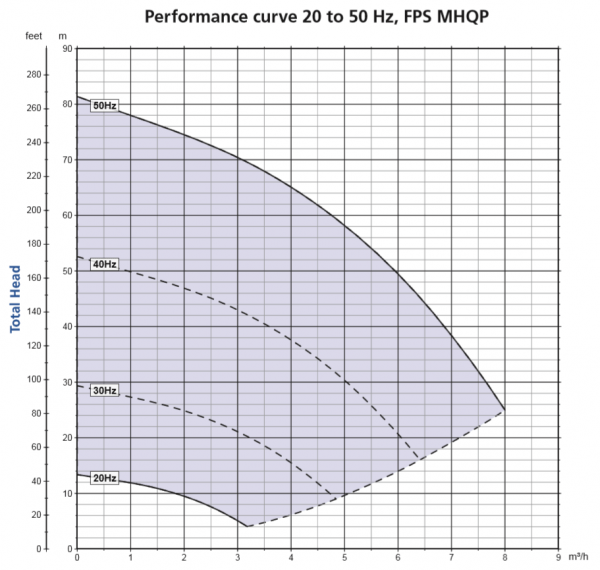

Pump Performance:  up to 80 lpm @ 500 kPA    (Constant pressure)
Flow rate:  10 lpm @ 500 kPA  (Adjustable outlet pressure)
Flow rate:  40 lpm @ 500 kPA (Adjustable outlet pressure)

• Power supply 240/1/50 FLC 9.6 amps
• Motor 230/3/50 TEFC, Class F IP55 rated 2 pole
• Stainless steel pump end on all wetted parts
• DrivE-Tech VSD, under and over voltage, overload, run dry protection
• 10 amp 3 pin plug with 2 metre lead
• 8 litre pressure tank rated 10 bar
• Capacities up to 120 lpm
• Capable of heads up to 6.0 bar at 50 Hz
• Connections: suction 32mm FI BSP discharge 25mm FI BSP
• Maximum working pressure 10 bar
• Maximum ambient temperature 40 °C
• Liquid temperature range from -15 to 90 °C
• Approved by Brisbane City Council
• Complies with AS 4020 Drinking Water

We can help you program on site or we can program the pump to suit your application before it leaves our shop

Manufacturer’s warranty:  2 years  Made in Italy
