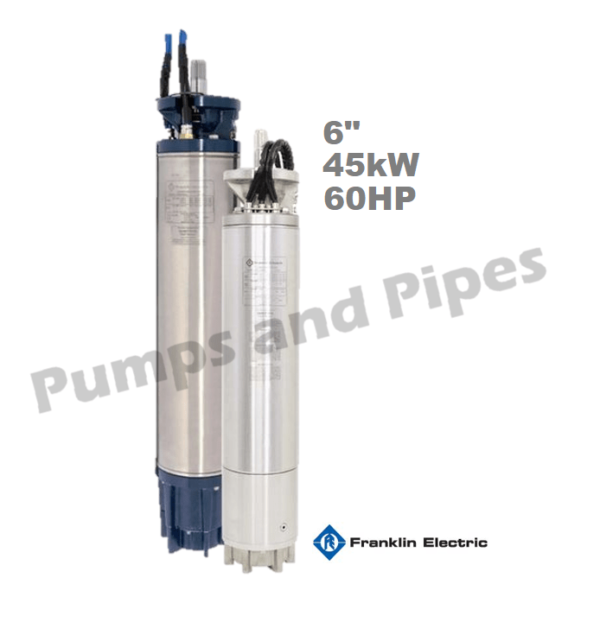

6inch 45kW 60HP 316 Stainless Steel Three Phase Submersible Bore Pump Motor Franklin Model 2366994047
$14,200.00
45kW 60HP 6″ 316 Stainless Submersible Bore Pump Motor
Pumps for Water Supply and Irrigation
Three phase 415 V 50 hz 2900 rpm FLC 87.9A
Please call for pricing and more information
Manufacturer’s warranty: 1 years Made in USA
- Description
- Additional information
- Downloads
Description
45kW 6″ 316 Stainless Steel Submersible Motor can be installed on all wet ends with Spline Coupling.
Can be used on following pump ends: Franklin, Lowara, Southern Cross, TKL, Goulds and Grundfos
Specifications:
- Hermetically sealed stator, anti track self healing stator resin prevents motor burn out
- Removable Water Bloc™ lead connector
- Cable material according to drinking water regulations (VDE/ACS/KTW approved)
- All motors are prefilled with water and 100% tested
Technical Specifications:
- 45.0 kW 6″ NEMA flange, Outside Diameter 138 mm
- Starts per hour: max. 10 vertical or horizontal installation
- Standard voltage: 415 V/50Hz FLC 87.9 Amps
- Voltage tolerance 50 Hz: 415 Volt AC -10% / +6%
- Insulation: Class F Rated ambient temperature: 30°C ,Cooling flow: min. 0.16 m/s
- Single Motor lead in 4 meter length (VDE/ACS/KTW approved)
- Types of starting Soft Starter, VSD or VFD, Auto Transformer (please call to discuss)
Please call for pricing, more information or to discuss
Manufacturer’s warranty: 1 years Made in USA
Additional information
| Weight | 148 kg |
|---|---|
| Dimensions | 183 × 18 × 31 cm |
| Brand | Franklin |
