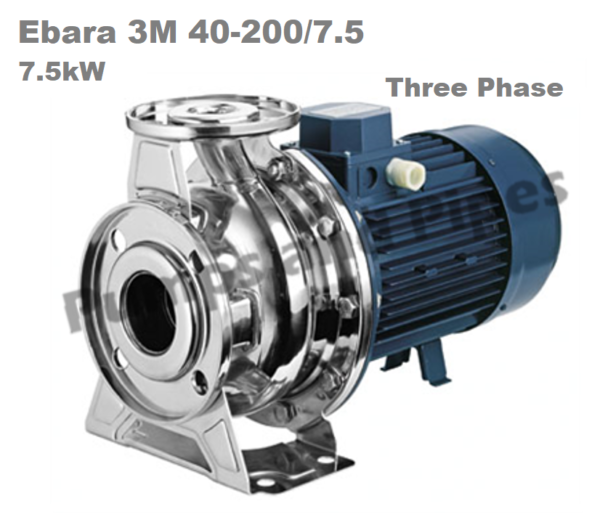

Ebara 3M 40-200/7.5 Three Phase 7.5kW 304 Stainless Steel End Suction Pump Unit

Ebara 3M 40-200/7.5 Three Phase 7.5kW 304 Stainless Steel End Suction Pump Unit

$3,740.00

In stock

$3,740.00

View cart

Stainless steel end suction centrifugal pump which is used for industrial and factory water transfer

Pump performance:  400 lpm @ 530 kPa
Material of construction:  SS/SS/SS
Power supply:   7.5kW 415V three phase 50hz FLC 15A
Pump material: AISI304 stainless steel
Connections:  DIN65/DIN40 Flanged
Manufacturer’s warranty:  2 years  Made in Italy

SKU: 3M40-200/7.5

Description

Stainless steel end suction centrifugal pump which is used for industrial and factory water transfer

Pump performance:  Shut off head 580 kPa  no flow maximum pressure
Pump performance: 200 lpm @ 570 kPa
Pump performance: 400 lpm @ 530 kPa
Pump performance: 600 lpm @ 480 kPa  end of curve

Material of construction:  SS/SS/SS
Power supply:   7.5kW 415V three phase 50hz FLC 15A
Impeller material: AISI304 stainless steel
Casing material: AISI304 stainless steel
Suction connection:  DIN65 Flanged
Discharge connection:  DIN40 Flanged
Starting method:  VSD or soft starter (DOL check local electrical supply)
Maximum temperature:  90 deg C

Manufacturer’s warranty:  2 years  Made in Italy

Additional information

Weight60 kg
Dimensions60 × 40 × 50 cm
Brand

Ebara

3M 40-200 curves

Download

3M dimensional drawings

Download

3M motor data

Download
