Description

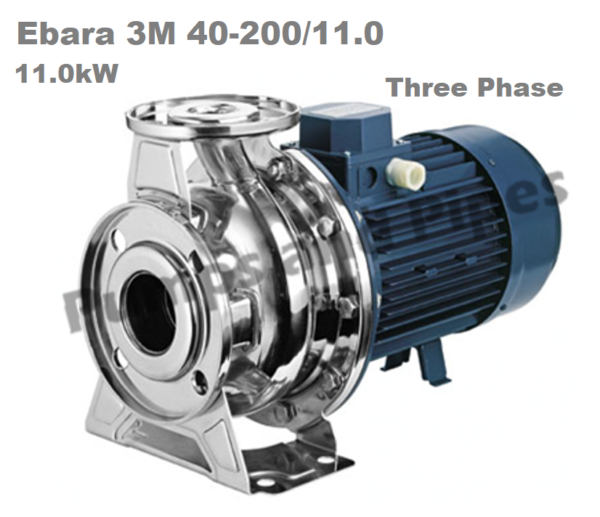

Stainless steel end suction centrifugal pump which is used for industrial and factory water transfer

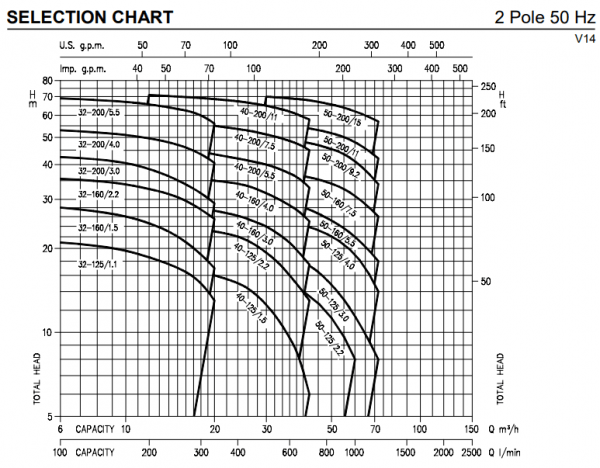

Pump performance:  Shut off head 720 kPa  no flow maximum pressure
Pump performance: 200 lpm @ 700 kPa
Pump performance: 400 lpm @ 670 kPa
Pump performance: 600 lpm @ 620 kPa  end of curve

Material of construction:  SS/SS/SS
Power supply:   11.0kW 415V three phase 50hz FLC 19A
Impeller material: AISI304 stainless steel
Casing material: AISI304 stainless steel
Suction connection:  DIN65 Flanged
Discharge connection:  DIN40 Flanged
Starting method:  VSD or soft starter (DOL check local electrical supply)
Maximum temperature:  90 deg C

Manufacturer’s warranty:  2 years  Made in Italy
