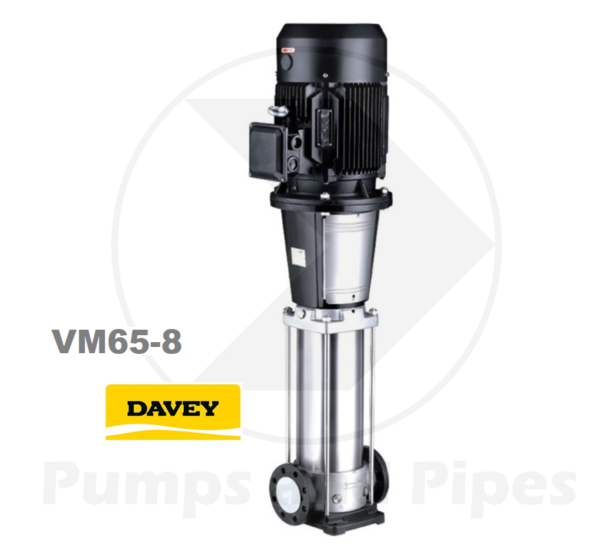

Davey VM65-8 45.0kW Vertical Multistage Pump
Vertical multistage centrifugal pump which is used for water supply and irrigation applications
Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice
Pump performance: lpm @ kPa ( psi)
AS4020 approved for use in drinking water
Power supply: 45.0kW 415V three phase 50hz FLC A
Manufacturer’s warranty: 2 years
- Description
- Additional information
- Downloads
Description
Vertical multistage centrifugal pump which is used for municipal and building water supply, wash down and irrigation applications
Pump performance: Shut off head kPa ( psi) no flow – maximum pressure
Pump performance: 300 lpm @ 700 kPa
Pump performance: 600 lpm @ kPa
AS4020 approved for use in drinking water
Material of construction: SS/SS/SS
Power supply: 45.0kW 415V three phase 50hz FLC A
Impeller material: AISI304 stainless steel
Suction connection: DIN65 Flanged
Discharge connection: DIN65 Flanged
Starting method: VSD or soft starter
Maximum temperature: 90 deg C
Can be used to replace other brands of multistage pump units
Manufacturer’s warranty: 2 years
Additional information
| Weight | 435 kg |
|---|---|
| Dimensions | 195 × 60 × 60 cm |
| Brand | Davey |
