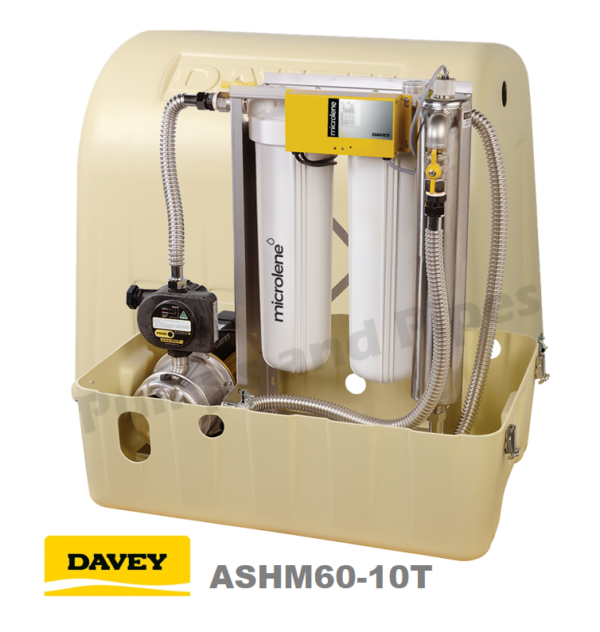

Davey Aquashield ASHM60-10T Self Contained Water Pump And Filter System

Davey Aquashield ASHM60-10T Self Contained Water Pump And Filter System

$4,640.00

In stock

$4,640.00

Aquashield MAX UV Pressure System Model Number:  ASHM60-10T

Pressure boosting and disinfection of rainwater
Large home or school potable water supply
Filtered system performance:  up to 60 lpm @ 450 kPA

Davey HM60-10  1.0kW 240V single phase FLC 8amps
Inlet 32mm FI BSP, Outlet 25mm FI BSP
Dual Filters and UV Lamp
Weather proof enclosure, self contained pump station

Manufacturer’s warranty:  2 years   Made in Australia



SKU: ASHM60-10T

Description

Aquashield MAX UV Pressure System Model Number:  ASHM60-10T

• Pressure boosting and disinfection of rainwater
• Large home potable water supply
• School shower and toilet blocks
• Guest house potable water supply

Filtered system performance:  20 lpm @ 640 kPA
Filtered system performance:  40 lpm @ 560 kPA
Filtered system performance:  60 lpm @ 450 kPA

Pump:  Davey HM60-10  1.0kW 240V single phase FLC 8amps
Torrium controller with loss of prime and constant flow device
System connection ports:  Inlet 32mm FI BSP, Outlet 25mm FI BSP
Dual Filters:  20micron pleated filter, 1micron melt spun filter – clean or change after 3-6 months
UV Lamp:  Low pressure high intensity with inner sleeve quartz – change in 12months
Weather proof enclosure, self contained pump station

Dimension:  90cm L x 60cm W x 90cm H    Weight 92kg

Manufacturer’s warranty:  2 years   Made in Australia



Additional information

Weight 100 kg
Dimensions 120 × 120 × 120 cm
Brand

Davey

ASHM Data sheet
