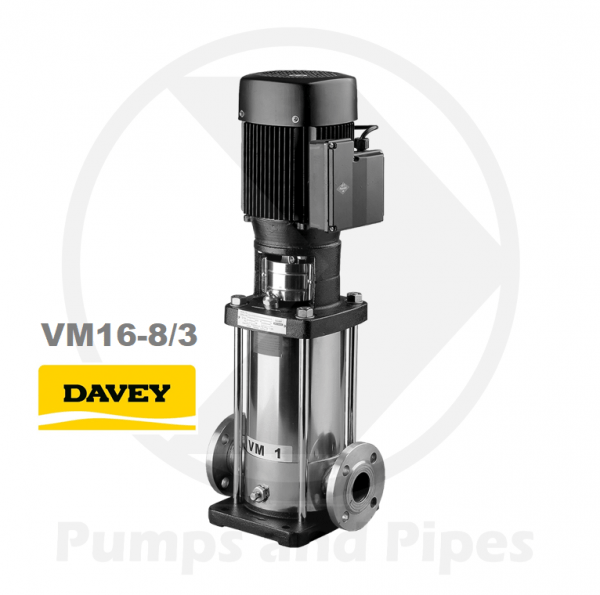

Davey VM16-8/3 7.5kW Three Phase Vertical Multistage Pump

Davey VM16-8/3 7.5kW Three Phase Vertical Multistage Pump

In stock

Vertical multistage centrifugal pump which is used for water transfer and irrigation applications

Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice

Pump performance:  300 lpm @ 860 kPa
AS4020 approved for use in drinking water
Power supply:   7.5kW 415V three phase 50hz FLC 13.1A
Suction/discharge connections:  DIN50 Flanged

Manufacturer’s warranty:  2 years

SKU: VM1608/3

Description

Vertical multistage centrifugal pump which is used for municipal and building water supply, wash down and irrigation applications

Pump performance:  Shut off head 1120 kPa  (150 psi) no flow maximum pressure
Pump performance:  180 lpm @ 1050 kPa
Pump performance:  300 lpm @ 860 kPa
Pump performance:  360 lpm @ 730 kPa

AS4020 approved for use in drinking water

Material of construction:  SS/SS/SS
Power supply:   7.5kW 415V three phase 50hz FLC 13.1A
Impeller material: AISI304 stainless steel
Suction connection:  DIN50 Flanged
Discharge connection:  DIN50 Flanged
Starting method:  VSD or soft starter (DOL check with local electrical authority)
Maximum temperature:  90 deg C
Can be used to replace other brands of multistage pump units

Manufacturer’s warranty:  2 years

Additional information

Weight90 kg
Dimensions120 × 40 × 40 cm
Brand

Davey

VM16 curve only

Download

VM16 line drawing

Download

VM16 dimension table

Download
