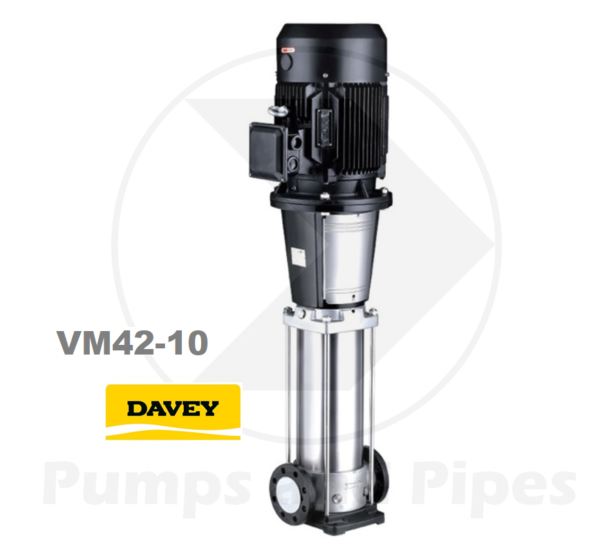

Davey VM42-10 37.0kW Vertical Multistage Pump

Davey VM42-10 37.0kW Vertical Multistage Pump

In stock

Vertical multistage centrifugal pump which is used for water supply and irrigation applications

Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice

Pump performance:  lpm @ kPa  ( psi)
AS4020 approved for use in drinking water
Power supply:   22.0kW 415V three phase 50hz FLC  A
Manufacturer’s warranty:  2 years

SKU: VM42-10

Description

Vertical multistage centrifugal pump which is used for municipal and building water supply, wash down and irrigation applications

Pump performance:  Shut off head  kPa  ( psi) no flow – maximum pressure
Pump performance:  300 lpm @ 700 kPa
Pump performance:  600 lpm @  kPa

AS4020 approved for use in drinking water

Material of construction:  SS/SS/SS
Power supply:   37.0kW 415V three phase 50hz FLC A
Impeller material: AISI304 stainless steel
Suction connection:  DIN65 Flanged
Discharge connection:  DIN65 Flanged
Starting method:  VSD or soft starter
Maximum temperature:  90 deg C
Can be used to replace other brands of multistage pump units

Manufacturer’s warranty:  2 years

Additional information

Weight365 kg
Dimensions205 × 60 × 60 cm
Brand

Davey

VM42 curve

Download

VM Dimension table

Download

VM42 pump dimension

Download
