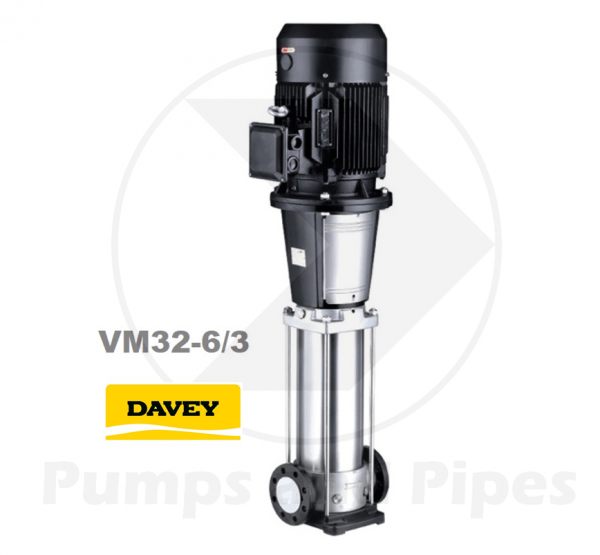

Davey VM32-6 Flanged 11kW Stainless Steel Vertical Multistage Pump

Davey VM32-6 Flanged 11kW Stainless Steel Vertical Multistage Pump

In stock

Vertical multistage centrifugal pump which is used for water supply and irrigation applications

Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice

Pump performance:  480 lpm @ 900 kPa  (123 psi)
AS4020 approved for use in drinking water
Power supply:   11.0kW 415V three phase 50hz FLC 19.4A
Manufacturer’s warranty:  2 years

SKU: VM32-6/3

Description

Vertical multistage centrifugal pump which is used for municipal and building water supply, wash down and irrigation applications

Pump performance:  Shut off head  1180 kPA  (psi) no flow – maximum pressure
Pump performance:  240 lpm @ 1100 kPA
Pump performance:  360 lpm @ 1020 kPA
Pump performance:  480 lpm @ 900 kPA
Pump performance:  600 lpm @ 680 kPA


AS4020 approved for use in drinking water

Material of construction:  SS/SS/SS
Power supply:   11.0kW 415V three phase 50hz FLC 19.4A
Impeller material: AISI304 stainless steel
Suction connection:  DIN65 Flanged
Discharge connection:  DIN65 Flanged
Starting method:  VSD or soft starter
Maximum temperature:  90 deg C
Can be used to replace other brands of multistage pump units

Manufacturer’s warranty:  2 years

Additional information

Weight140 kg
Dimensions160 × 40 × 40 cm
Brand

Davey

VM32 curve only

Download

VM32 dimensions

Download

VM20 32 42 65 90 dimension table

Download
