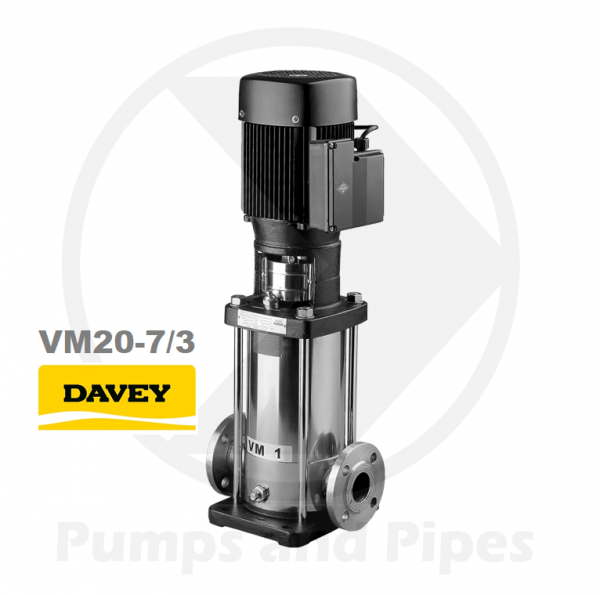

Davey VM20-7/3 7.5kW Three Phase Multistage Pump

Davey VM20-7/3 7.5kW Three Phase Multistage Pump

In stock

Vertical multistage centrifugal pump which is used for water transfer, wash down and irrigation applications

Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice

Pump performance:  420 lpm @ 580 kPa
AS4020 approved for use in drinking water
Power supply:   7.5kW 415V three phase 50hz FLC 13.3A
Can be used to replace other brands of multistage pump units

Manufacturer’s warranty:  2 years

SKU: VM20-7/3

Description

Vertical multistage centrifugal pump which is used for municipal and building water supply, wash down and irrigation applications

Pump performance:  Shut off head 980 kPa  (131 psi) no flow maximum pressure
180 lpm @ 920 kPa
300 lpm @ 860 kPa
420 lpm @ 580 kPa  end of curve

AS4020 approved for use in drinking water

Material of construction:  SS/SS/SS , Pump end complete stainless steel

Power supply:   7.5kW 415V three phase 50hz FLC 13.3A
Impeller material: AISI304 stainless steel
Suction connection:  DIN50 Flanged
Discharge connection:  DIN50 Flanged
Starting method:  VSD or soft starter (DOL check with local electrical authority)
Maximum temperature:  90 deg C
Can be used to replace other brands of multistage pump units

Manufacturer’s warranty:  2 years

Additional information

Weight110 kg
Dimensions140 × 40 × 50 cm
Brand

Davey

VM20 pump curve only

Download
