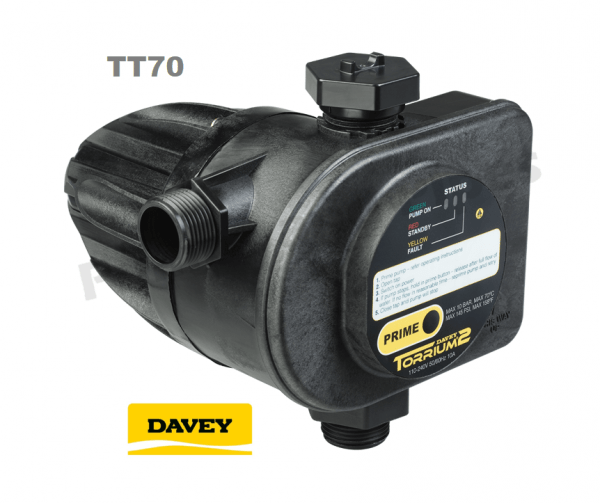

Davey Torrium TT70 Controller Pressure Switch

Davey Torrium TT70 Controller Pressure Switch

In stock

Reviews Summary by AI:

Torrium 2 is an intelligent controller designed to supply pressure boosted water with constant flow and even water pressure to domestic households.

Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice
Maximum system pressure: 1000 kPa Capacities to 200 lpm
Recommended pump shut-off head range TT70 …….  450 to 700 kPa
Controller Connections:  25mm MI BSP
Power Supply: Single Phase, 240V ± 10%, 50hz FLC 10 amps

Manufacturer’s warranty:  2 years

Description

Torrium 2 TT70 is an intelligent controller designed to supply pressure boosted water with constant flow and even water pressure to domestic households.
Torrium 2 has three simple LED indicators
• Red LED – the system is in standby mode
• Green LED – the pump is running
• Yellow LED – fault condition

Maximum system pressure: 1000 kPa Capacities to 200 lpm
Recommended pump shut-off head range TT70 …….  450 to 700 kPa
Torrium2 cut-in pressure is normally 80% of the pump’s last shut-off head.
Maximum ambient temperature:  50º C
Water Temperature Range:       1º C  –  70º C
Controller Connections:  25mm MI BSP
Power Supply: Single Phase, 240V ± 10%, 50hz FLC 10 amps
Maximum motor size – 220V 1.8kW (2.4 hp)
Surge Protection Metal oxide varistor

Manufacturer’s warranty:  2 years

Additional information

Brand

Davey

Torruim2 Data Sheet

Download
