Description

APPLICATIONS

Specific applications include:
> Water supply, boosting and transfer
> Irrigation, turf watering and wash down
> Emptying/filling reservoirs or tanks
> Water treatment (demineralisation, filtering etc)
> Commercial washing equipment

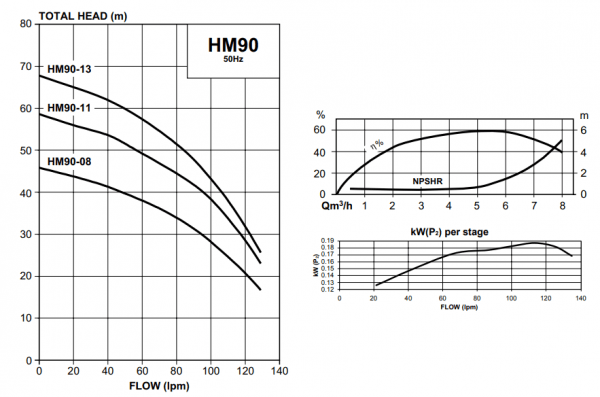

Pump performance:  80 lpm @ 340 kPa
Flow rate:  zero flow @ 460 kPa   (shut off head)
Flow rate:  40 lpm @ 400 kPa
Flow rate:  120 lpm @ 200 kPa  End of curve

Maximum operating pressure 1000 kPa
Maximum suction pressure 600 kPa
Temperature range -15º to 105ºC
Maximum ambient temperature 50ºC
Supply Voltage: Three phase 415V ±10%
Motor details: 400/3/50 IP55 FLC 2.2 amps 2 pole Class F

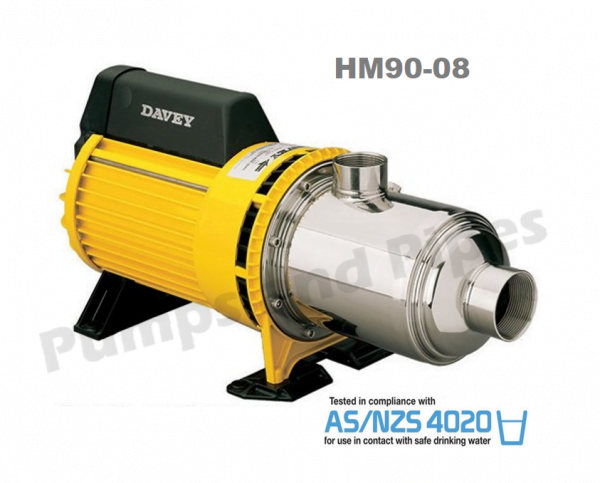

HM range has axial suction and vertical discharge with a compact design for ease of install.

Features include:

• All stainless-steel pump componentry for better corrosion and abrasion resistance, low noise output and reduced power consumption
• Air purging valve and stage porting for easier priming, and less susceptibility to air leaks
• Impellers are mounted directly on to the extended motor shaft maximising performance per stage, and increased wear resistance – leading to a long motor + pump life
• Complete stainless casing attached to motor bracket at 8 points with an o-ring seal, for better sealing
• Totally enclosed fan cooled (TEFC) electric motor with built in thermal overload protection and automatic reset

Manufacturer’s warranty:  2 years
