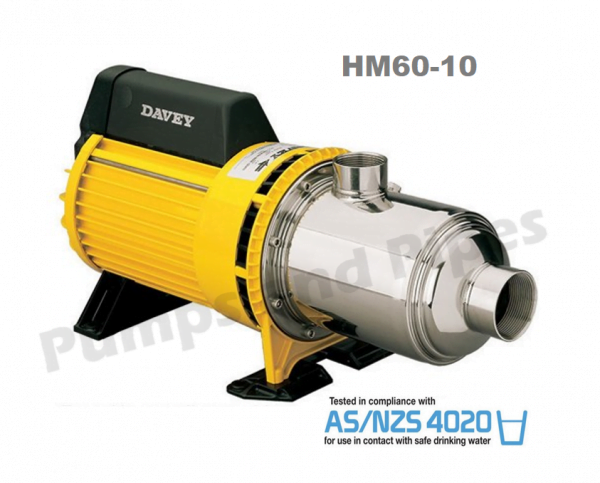

Davey HM60-10/3 Three Phase 0.94kW Stainless Steel Multistage Pump

Davey HM60-10/3 Three Phase 0.94kW Stainless Steel Multistage Pump

In stock

Davey HM60-10/3 Three Phase

Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice
0.94kW Motor
5.9 amps run, 28 amps start
1¼” Suction BSP Port
1″ Discharge BSP Port
60lpm Nominal flow

SKU: HM60-10/3

Description

APPLICATIONS
Specific applications include:
> Water supply, boosting and transfer
> Irrigation and turf watering
> Wash down
> Emptying/filling reservoirs or tanks
> Water treatment (demineralisation, filtering etc)
> Commercial washing equipment

With maximum flow rates of up to 425 lpm, and up to 69m head, the HM range has axial suction and vertical discharge with a compact design for ease of install.

Features include:

  • All stainless-steel pump componentry for better corrosion and abrasion resistance, low noise output and reduced power consumption
  • Air purging valve and stage porting for easier priming, and less susceptibility to air leaks
  • Impellers are mounted directly on to the extended motor shaft maximising performance per stage, and increased wear resistance – leading to a long motor + pump life
  • Complete stainless casing attached to motor bracket at 8 points with an o-ring seal, for better sealing
  • Totally enclosed fan cooled (TFEC) electric motor with built in thermal overload protection and automatic reset

Additional information

Weight18 kg
Dimensions47 × 19 × 24 cm
Brand

Davey

Davey HM Horizontal Datasheet

Download
